4 Series T-Connector Plate D28

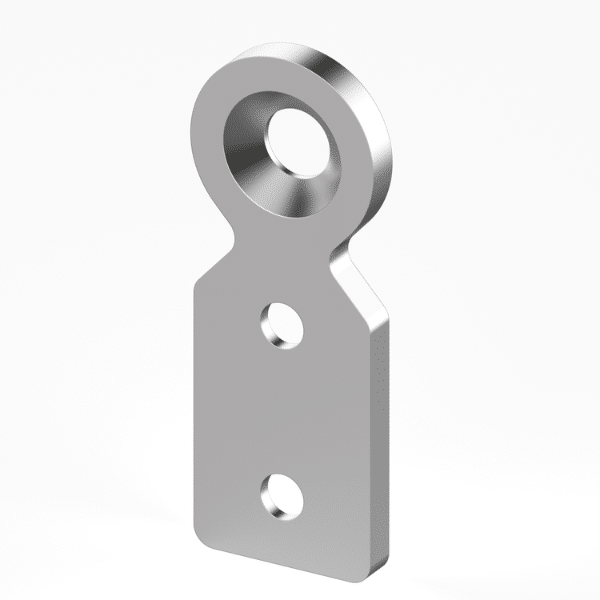

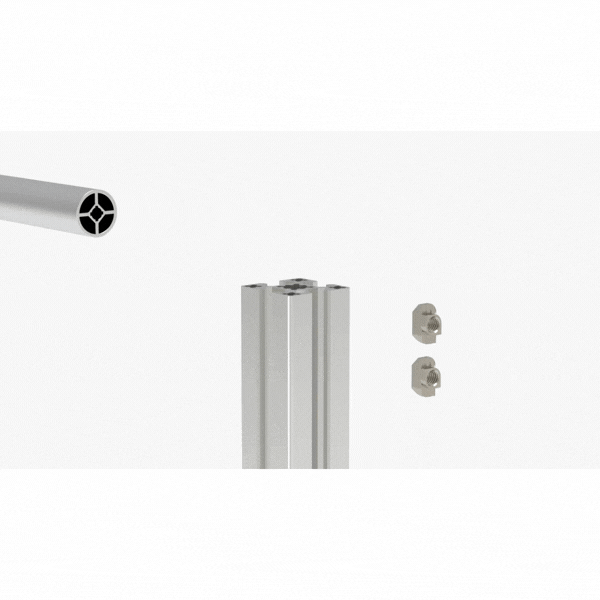

4 Series T-Connector Plate D28 is a zinc plated steel connector used to join Ø 28 mm tubular frame profiles to SlotPro 4 Series aluminium extrusions at a 90 degree angle. The plate fastens to the core hole or threaded sleeve (D28 M8) of the round tube and attaches externally to the T slot profile using standard M8 fixings.

The 4 Series T-Connector Plate D28 does not require any machining and allows easy assembly, reconfiguration, or reuse, making it ideal for hybrid builds that combine round pipe systems with modular T slot framing.

Product Code: 6.04.SPD28
Material: Zinc Plated Steel
Compatible With: Tubular Frame Profiles Ø 28 mm + 4 Series SlotPro Extrusions

Fixings Required:
• 3 x M8 x 12 Bolt
• 3 x M8 Washer
• 3 x M8 T Nut

Key Features:
• Connects Ø 28 mm tubular profiles to 4 Series T slot extrusions
• Forms strong 90 degree T connections
• No milling required—fast, clean installation
• Works with threaded sleeves or core hole fastening
• Zinc plated for corrosion resistance and durability

Common Applications:
• Modular racking and workstations
• Hybrid pipe and T slot assemblies
• Material handling frames and carts
• Industrial and workshop support structures
• Lightweight barrier or guarding builds

Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or custom extrusion lengths.
