Description

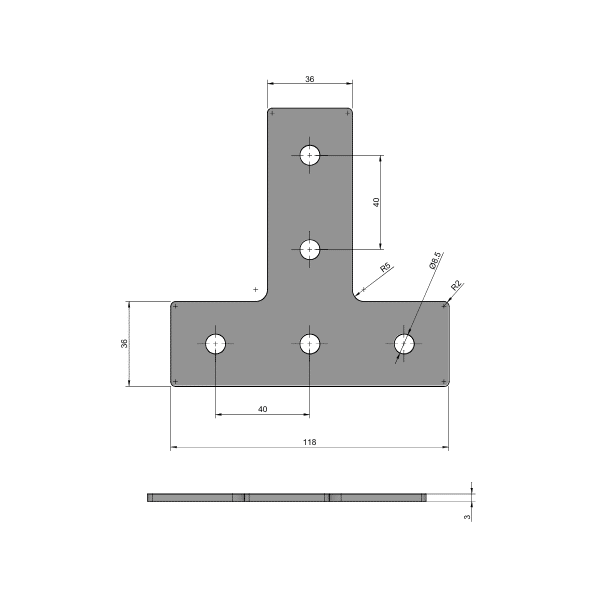

4 Series Flat T Plate is a strong external connector used to join three SlotPro 4 Series aluminium profiles in a T shaped layout. The plate sits flush on top of the profiles and is secured using T slot fixings, creating a rigid 90 degree connection without the need for milling.
The 4 Series Flat T Plate is easy to assemble, reconfigure, and reuse, making it suitable for modular frames, guards, workstations, and industrial support structures. For extra strength and durability, plates can be installed on both sides of the connected profiles.
Product Code: 6.04.SPTP
Material: Zinc Plated Steel
Compatible With: 4 Series SlotPro Extrusions
Fixings Included:
• 5 x M8 x 12 Bolt
• 5 x M8 Washer
• 5 x M8 T Nut
Key Features:
• Connects three profiles in a T shaped layout
• Creates strong 90 degree external connections
• Flush plate design helps maintain clearance
• No milling required for installation
• Easy to assemble, reconfigure, and reuse
Common Applications:
• T frame connections
• Machine guards and safety enclosures
• Modular workstations and benches
• Industrial racking and support structures
• Aluminium frames requiring three way profile joins
Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or custom extrusion lengths.
