Description

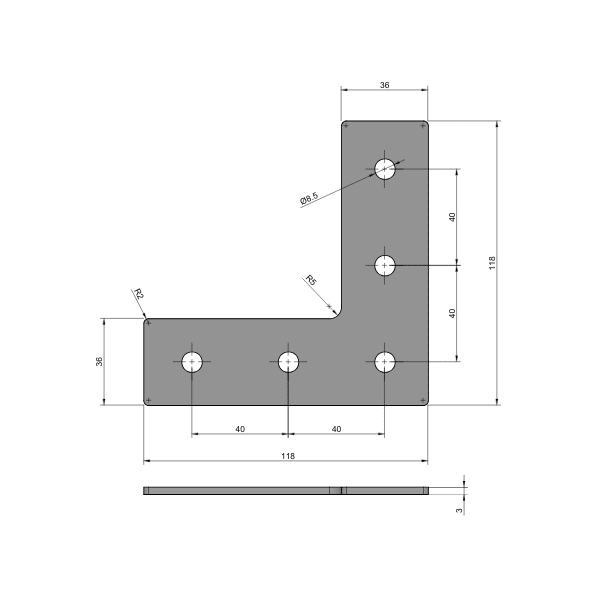

4 Series Flat L Plate is a strong external connector used to join two SlotPro 4 Series aluminium profiles at 90 degrees. The plate mounts over the outside of the profiles and is secured using T slot fixings, creating a rigid and reliable corner connection without the need for milling.
The 4 Series Flat L Plate is easy to assemble, reposition, and reuse, making it ideal for modular structures that may require future modification. For maximum strength and durability, plates can be installed on both sides of the connection.
Product Code: 6.04.SPLP
Material: Zinc Plated Steel
Compatible With: 4 Series SlotPro 40 x 40, 40 x 80, and 80 x 80 Extrusions
Fixings Included:
• 5 x M8 x 12 Bolt
• 5 x M8 Washer
• 5 x M8 T Nut
Key Features:
• Strong external corner connection method
• No milling required for installation
• Zinc plated steel construction for durability and corrosion resistance
• Easy to assemble, reconfigure, and reuse
• Can be fitted to both sides of a joint for increased strength
Common Applications:
• Aluminium frame assemblies
• Workstations and benches
• Machine guarding and safety enclosures
• Industrial support structures
• Modular racking and storage systems
Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or custom extrusion lengths.
