Description

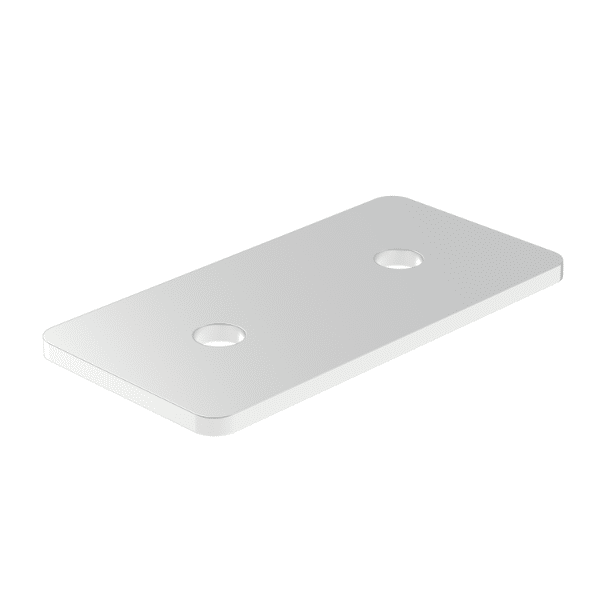

4 Series SlotPro External Joiner Plate is a slim rectangular stainless steel plate designed to connect two SlotPro 4 Series profiles externally. With two M8 mounting holes spaced for precise alignment, it enables quick and sturdy face-to-face joining, perfect for reinforcing or extending profiles in modular structures.
The 4 Series SlotPro External Joiner Plate requires no milling and is ideal for applications where a low-profile, easy-to-install fastening solution is needed.
Product Code: AMC02005
Material: Stainless Steel
Compatible With: All 4 Series SlotPro Extrusions
Fixings:
• 2 x 4 Series Roll in Slot Nut With Spring M8
• 2 x M8 x 16 Caphead Screws
• 2 x M8 Spring Washers
• 2 x M8 Flat Washers
Key Features:

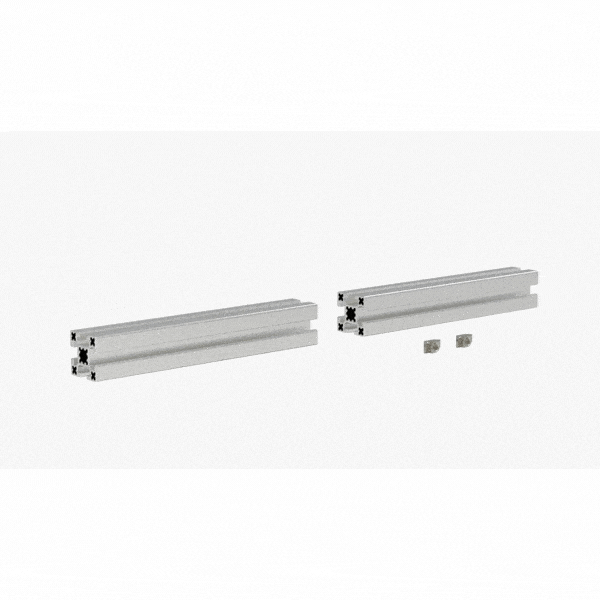

• Connects two aluminium profiles externally in line
• Clean and compact low-profile plate
• No machining or milling required
• Strong stainless steel construction with corrosion resistance
• Compatible with SlotPro 4 Series accessories
Dimensions:
• 80mm x 40mm x 5mm
Common Applications:
• Frame extensions and structural joins
• Modular workstations and racking
• Repairs or reinforcements in T slot frames
• Lightweight, compact connections
• Custom industrial or display builds
Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or custom extrusion lengths.
