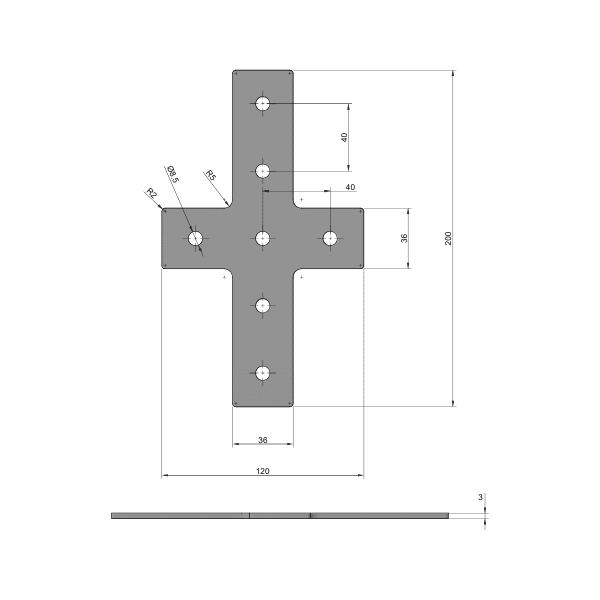

4 Series Flat X Plate

4 Series Flat X Plate’s are a strong, external connecting method. This plate is placed on top of the four elements and then fastened to the profiles. The x shape allows for four profiles to be connected. It is flush with the profiles, allowing for a larger clearance area. For extra sturdiness and also durability, it is best to connect plates on both sides of the profiles.

Includes fixings (7x M8x12 Bolts, M8 Sping Washer, M8 T Nut)

This connector does not require milling and is easy to assemble, reconfigure and reuse.

Download the CAD file for this product in .step format here.

Product Code: 6.04.SPXP

Material: Zinc Plated Steel

Compatible with: 4 Series SlotPro Extrusions.
