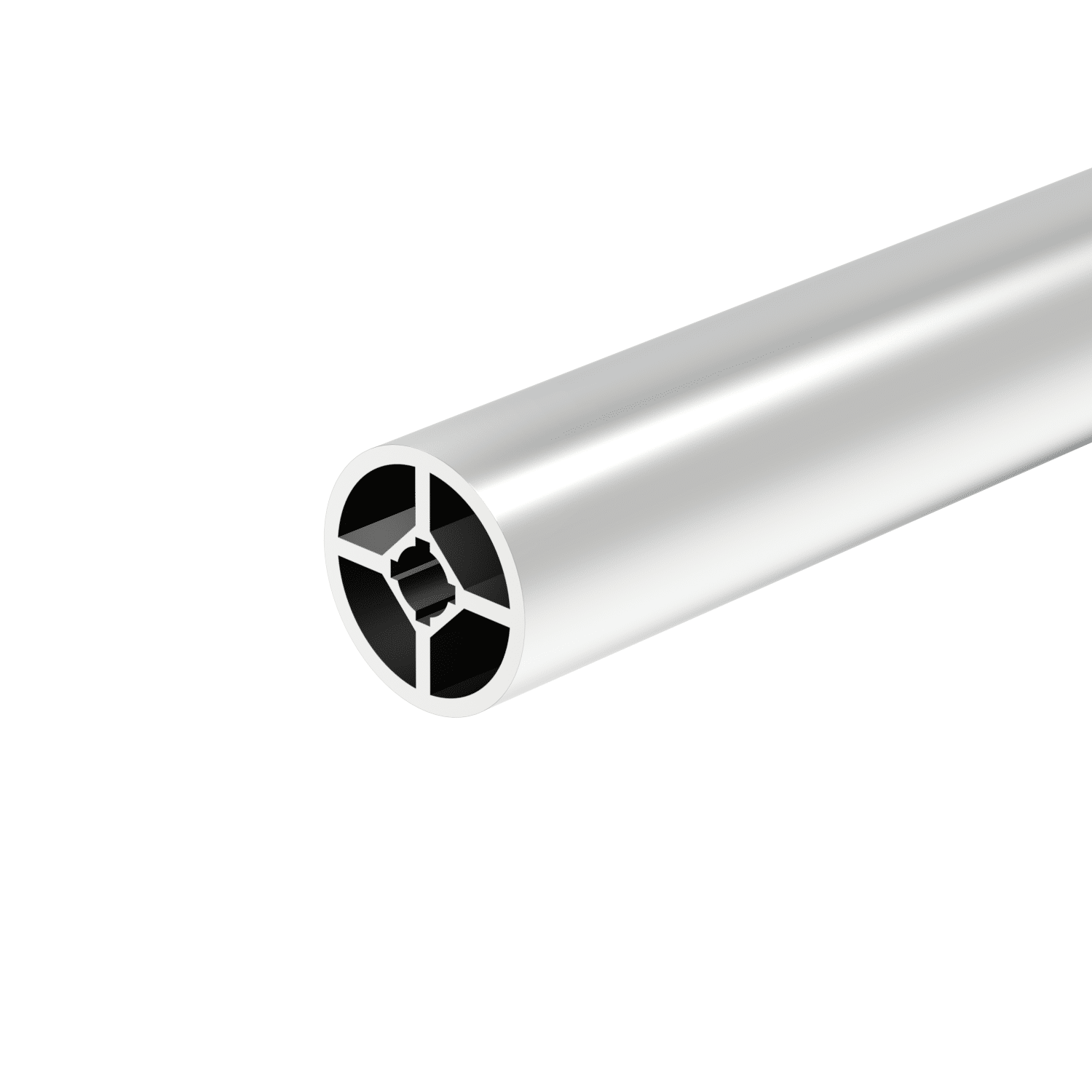

4 Series D28 Tube Profile

4 Series D28 Tube Profile is a modular round tube profile designed for lightweight structures, flow racks, workstations, trolleys, and lean manufacturing environments. With a 28mm diameter, this profile is suited to flexible framework builds that need to be assembled, adjusted, or expanded over time.

4 Series D28 Tube Profile is manufactured from steel with a coated silver finish, providing strength and long term reliability in workshop and production settings. Available cut to length, it works with D28 clamps and connectors for fast modular tube frame construction.

Product Name: 4 Series D28 Tube Profile
Product Code: TFS-D28-1
Series: 4 Series
Material: Steel
Grade: 6063T5
Finish: Coated
Colour: Silver
Length: Priced per mm, available in any length over 10mm and under 5800mm
Diameter: 28mm
Compatible With: SlotPro D28 clamps, connectors, and modular tube frame components

Key Features:
• 28mm round modular tube profile
• Lightweight construction with good frame strength
• Suitable for lean manufacturing setups
• Easy assembly using D28 clamps and connectors
• Available cut to length for custom builds

Installation Tip:
Select the required tube length when ordering. For flow racks, trolleys, or workstations, confirm clamp positions and frame spacing before assembly.

Common Applications:
• Flow racks and gravity fed systems
• Workstations and assembly benches
• Trolleys and material handling carts
• Lean production lines
• Custom modular frameworks

Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or help selecting the right components for your build.
