4 Series D28 T-Connector Plate

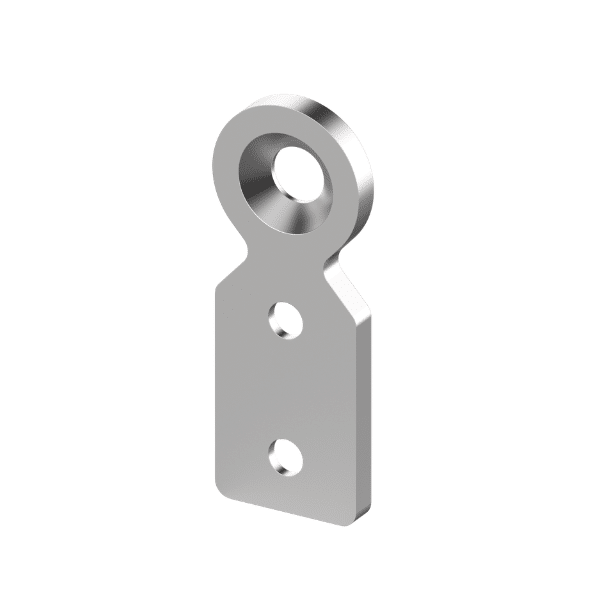

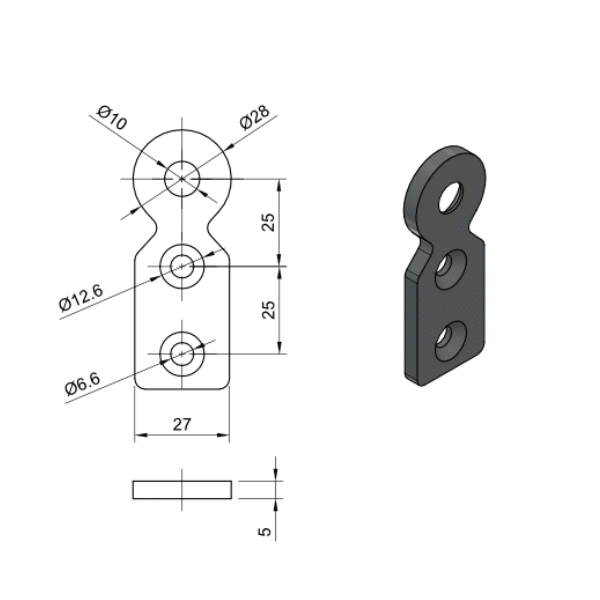

4 Series D28 T-Connector Plate is a zinc plated steel connector used to join Ø 28 mm tubular frame profiles to SlotPro 4 Series aluminium extrusions at a 90 degree angle. The plate fastens to the core hole or D28 M8 threaded sleeve of the round tube and attaches externally to the T slot profile.

4 Series D28 T-Connector Plate is suited to hybrid frame assemblies that combine round tube systems with SlotPro extrusion frames. It requires no milling, making it easy to install, adjust, and reuse across workstations, carts, racking, and light guarding structures.

Product Name: 4 Series D28 T-Connector Plate
Product Code: 6.04.SPD28
Series: 4 Series
Material: Zinc plated steel
Compatible With: Tubular Frame Profiles Ø 28 mm and 4 Series SlotPro extrusions

Fixings Required:
• 3 × M8 x 12 Bolt
• 3 × M8 Washer
• 3 × M8 T Nut

Key Features:
• Connects Ø 28 mm tubular profiles to 4 Series T slot extrusions
• Forms strong 90 degree T connections
• No milling required for fast installation
• Works with threaded sleeves or core hole fastening
• Zinc plated finish for corrosion resistance
• Suitable for hybrid pipe and aluminium profile frames

Installation Tip:
Fit the plate loosely to the round tube first, align it with the 4 Series profile, then tighten all fixings evenly once the frame position is set.

Common Applications:
• Modular racking and workstations
• Hybrid pipe and T slot frame assemblies
• Material handling frames and carts
• Industrial and workshop support structures
• Lightweight barrier and guarding builds

Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or help selecting the right components for your build.
