1Guard 150 x 200 Stainless Steel Foot

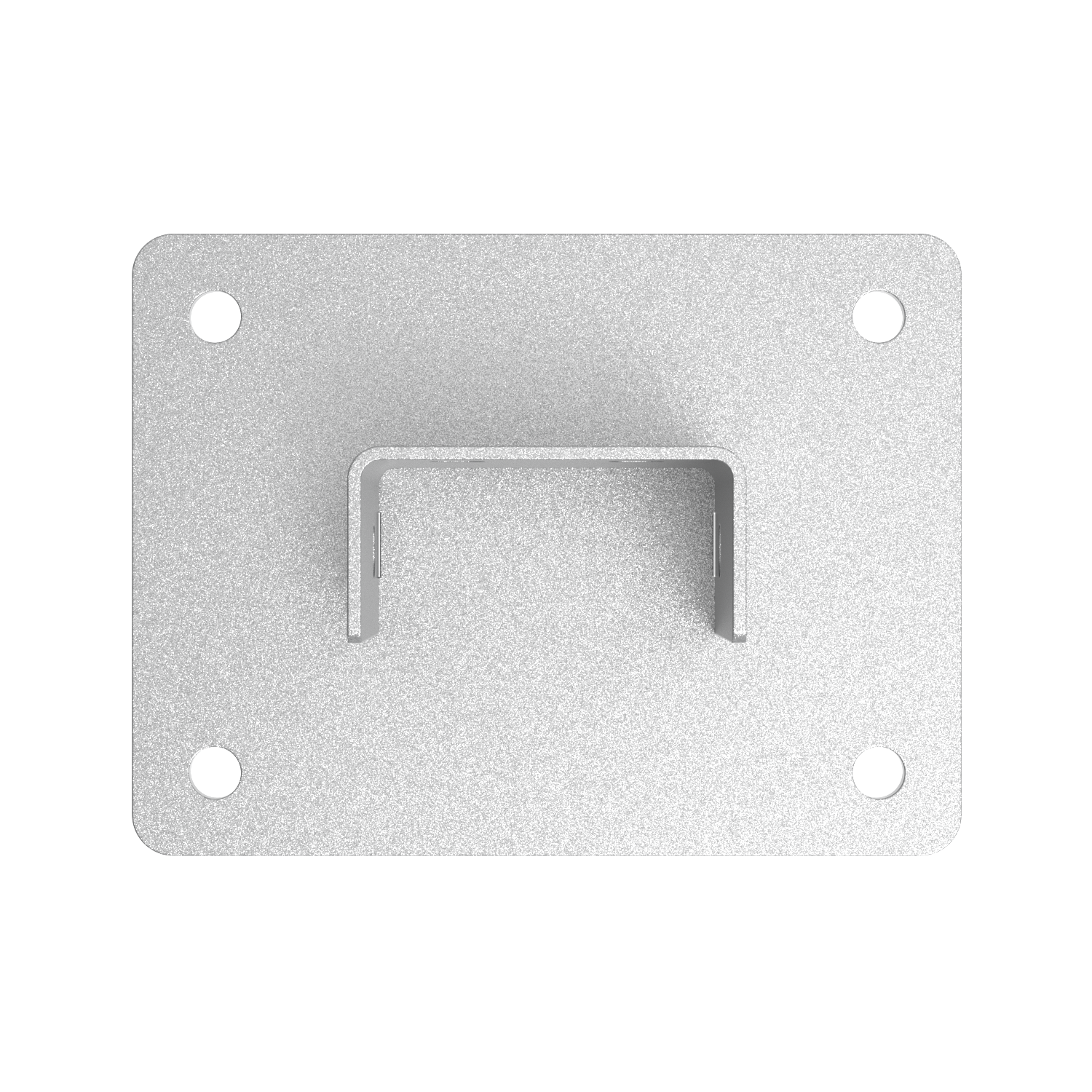

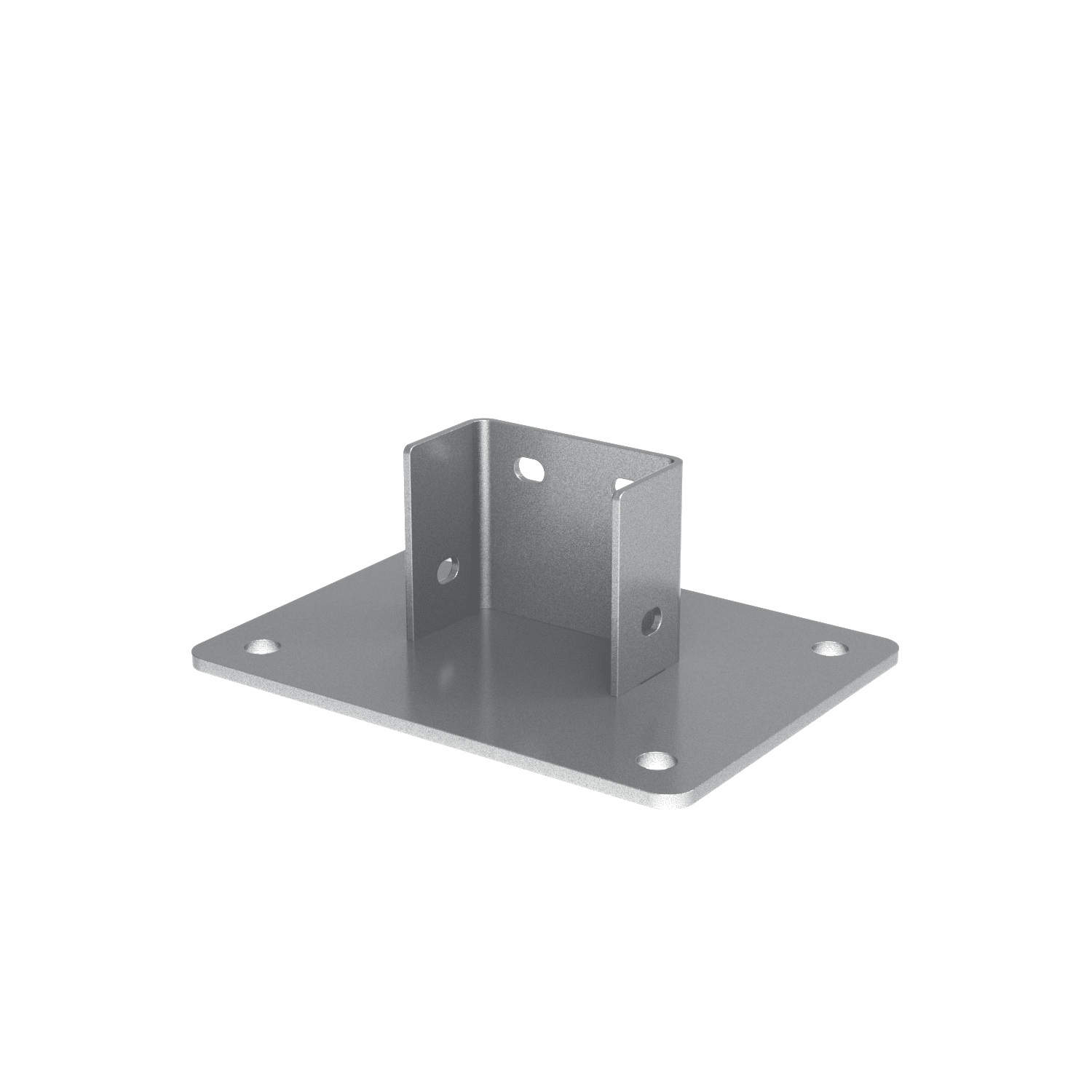

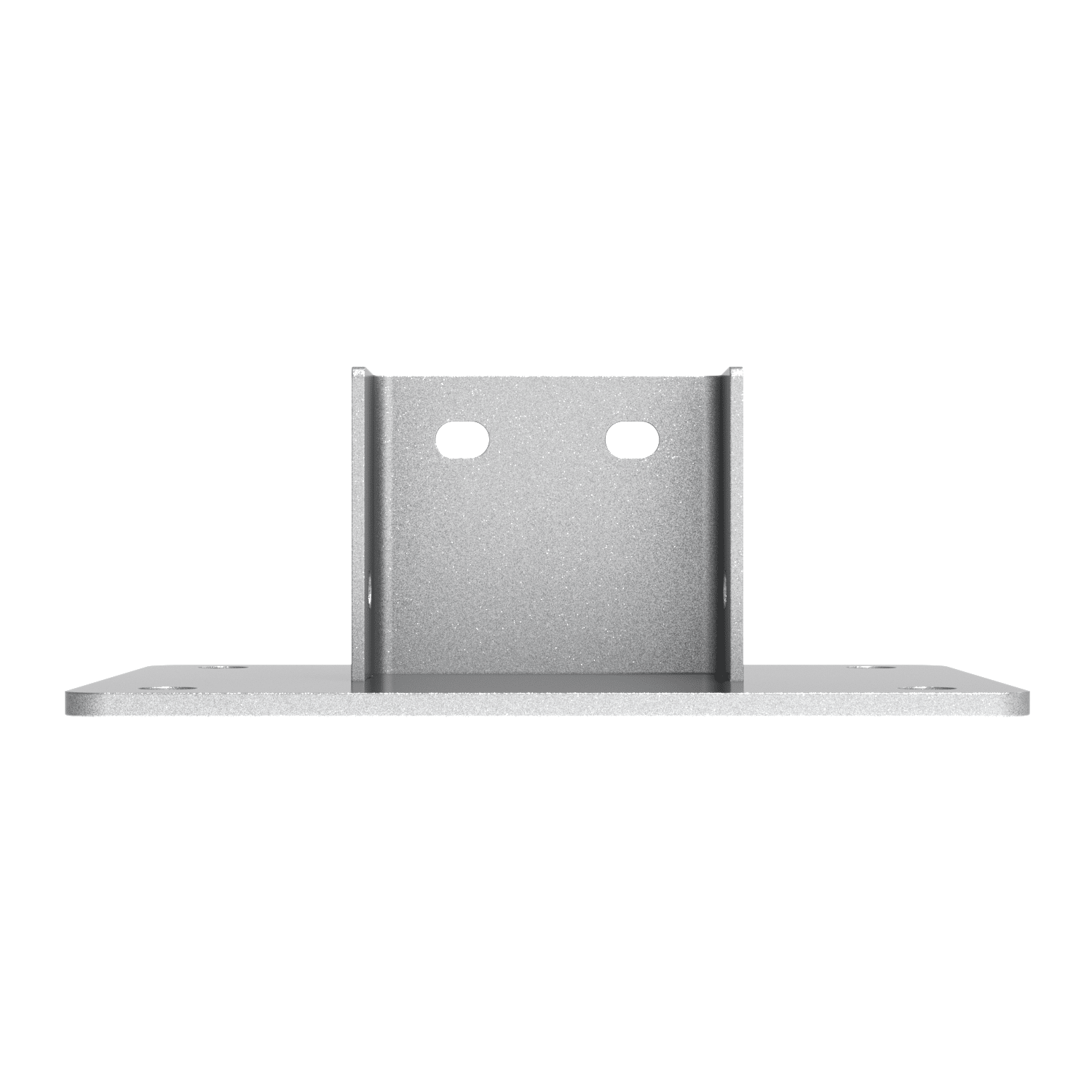

1Guard 150 x 200 Stainless Steel Foot is a heavy duty stainless steel baseplate used to support vertical SlotPro aluminium extrusions in 1Guard safety guarding layouts. The 150 x 200mm footprint provides an extended floor mounted base for 40 x 80 upright profiles used in mesh guarding panels, equipment enclosures, and modular safety barriers.

1Guard 150 x 200 Stainless Steel Foot is suited to demanding industrial and hygienic environments where corrosion resistance is required. The larger baseplate gives added support for 40 x 80 vertical uprights in washdown areas, food and beverage production, and other guarding layouts where a durable anchored base is needed.

Product Name: 1Guard 150 x 200 Stainless Steel Foot
Product Code: 1G.1520.FPSS
Material: Stainless steel
Colour: Silver
Compatible With: SlotPro 4 Series 40 x 80 extrusions only

Fixings Required:
Suitable floor anchors and 40 x 80 profile fixing hardware.

Key Features:
• Heavy duty stainless steel footplate for 1Guard upright supports
• Extended 150 x 200mm base for added floor support
• Corrosion resistant construction for demanding environments
• Pre drilled holes for secure floor mounting
• Suitable for washdown and hygienic work areas
• Designed for 40 x 80 vertical SlotPro extrusions only
• Available with or without fixings

Installation Tip:
Position the footplate at the required panel centres, fasten it securely to the floor using suitable floor anchors, then install the 40 x 80 upright profile and tighten the fixing hardware as required.

Note:
This product is only suitable for 40 x 80 SlotPro extrusions. It is available with or without fixings. Please select your preferred option when ordering.

Includes:
• 1 x 150 x 200mm stainless steel footplate
• Fixings included or excluded, depending on the option selected

Common Applications:
• 1Guard safety guarding systems
• Food and beverage production areas
• Washdown facilities
• Heavy duty mesh guarding panel supports
• Modular machine fencing
• Equipment enclosures
• Floor mounted 40 x 80 aluminium uprights

Need Design Help or Customisation?
SlotPro offers a full cut and mill service for tailored safety systems. Contact our team for layout advice or component compatibility.
📞 0800 00 28 32
📧 [email protected]
