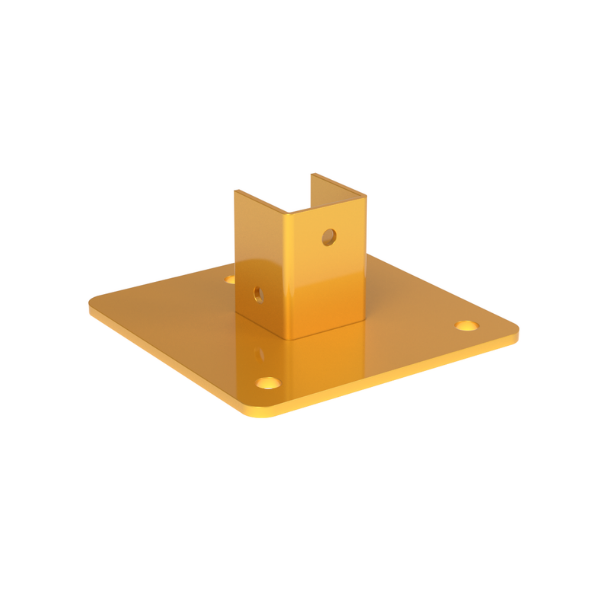

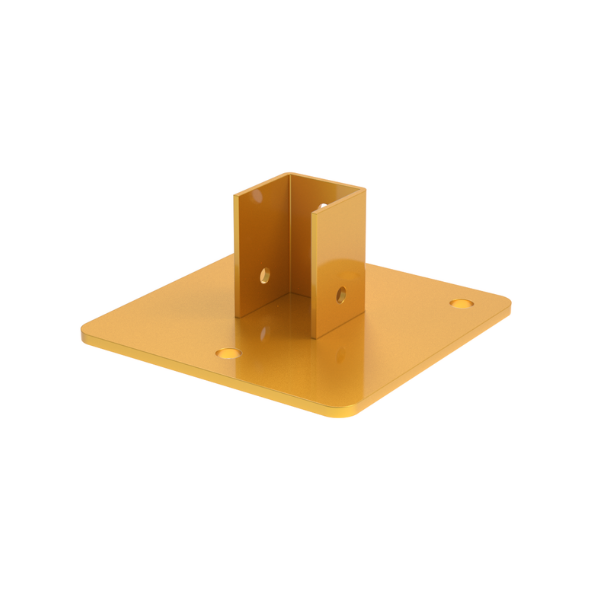

1Guard 150 x 150 Powder Coated Yellow Steel Foot

1Guard 150 x 150 Powder Coated Yellow Steel Foot is a heavy duty steel baseplate used to support vertical SlotPro aluminium extrusions in 1Guard safety guarding layouts. The 150 x 150mm footprint provides a stable floor mounted base for 40 x 40 upright profiles used in mesh guarding panels, equipment enclosures, and modular safety barriers.

1Guard 150 x 150 Powder Coated Yellow Steel Foot has a yellow powder coated finish for increased visibility around machinery, walkways, and guarded work areas. It is suitable for 1Guard guarding systems where a fixed upright support is required.

Product Name: 1Guard 150 x 150 Powder Coated Yellow Steel Foot
Product Code: 1G.1515.FPY
Material: Steel
Finish: Powder coated
Colour: Yellow
Compatible With: SlotPro 4 Series 40 x 40 extrusions

Fixings Required:
• 3 x 3.04.R.SP8, 4 Series M8 Roll In Slot Nut with Spring
• 3 x CHM8016, M8 x 16 Cap Screw
• 3 x WSM408, M8 Spring Washer

Key Features:
• Heavy duty steel footplate for 1Guard upright supports
• Yellow powder coated finish for increased visibility
• 150 x 150mm footprint for stable floor mounting
• Pre drilled holes for fast floor anchor installation
• Suitable for 40 x 40 vertical SlotPro extrusions
• Available with or without fixings

Installation Tip:
Position the footplate at the required panel centres and secure it to the floor using suitable floor anchors. Fit the 40 x 40 upright profile to the footplate using the profile fixing hardware, then tighten securely.

Note:
This product is suitable for 40 x 40 SlotPro extrusions only. It is available with or without the fixing hardware required to secure the footplate to the 40 x 40 upright profile. Please select your preferred option when ordering. Floor anchors are not included.

Includes:
• 1 x 150 x 150mm powder coated yellow steel footplate
• 40 x 40 upright profile fixing hardware, included or excluded depending on the option selected

Common Applications:
• 1Guard safety guarding systems
• Mesh guarding panel supports
• Modular machine fencing
• Industrial safety barriers
• Equipment enclosures
• Floor mounted 40 x 40 aluminium uprights
