Description

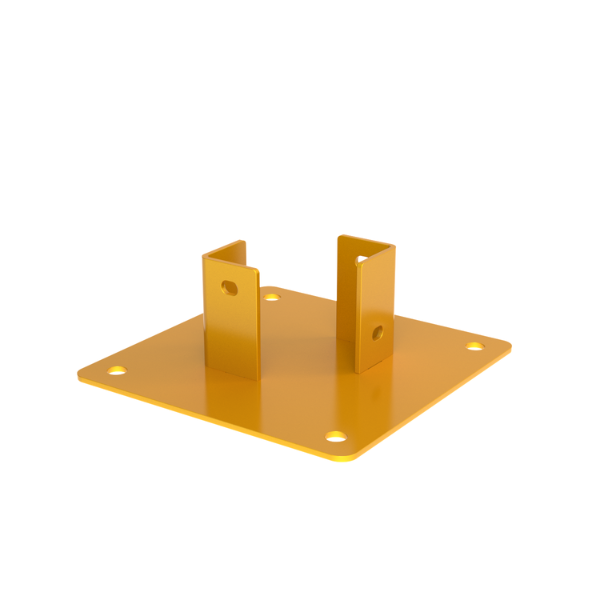

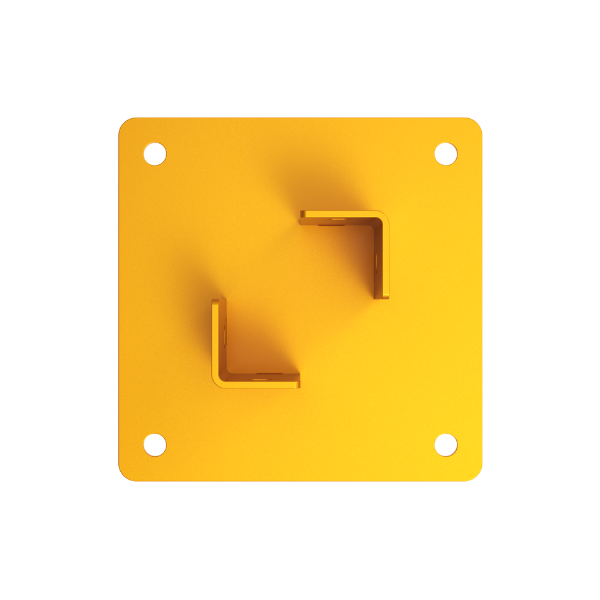

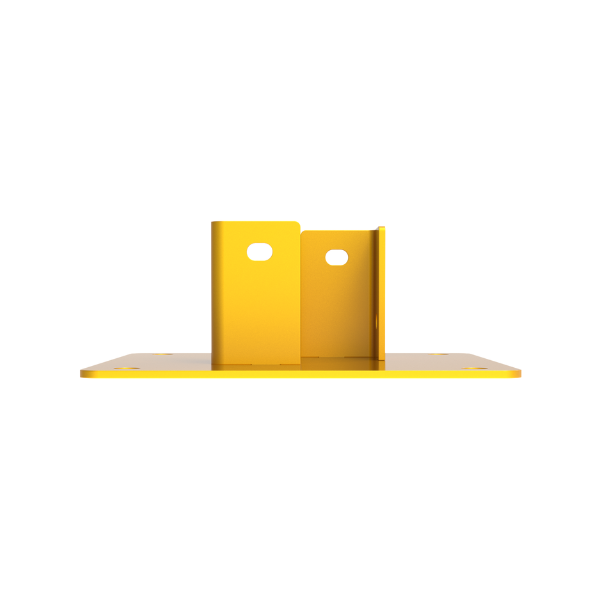

1Guard 200 x 200 Powder Coated Yellow Steel Foot is a heavy duty steel baseplate used to support vertical SlotPro aluminium extrusions in 1Guard safety guarding layouts. The 200 x 200mm footprint provides a larger floor mounted base for 80 x 80 upright profiles used in machine guarding, factory enclosures, and modular safety barriers.

1Guard 200 x 200 Powder Coated Yellow Steel Foot has a yellow powder coated finish for increased visibility around machinery, walkways, and guarded work areas. It is suited to guarding systems where a larger baseplate is required for tall or high support 80 x 80 vertical uprights.

Product Name: 1Guard 200 x 200 Powder Coated Yellow Steel Foot
Product Code: 1G.2020.FPY
Material: Steel
Finish: Powder coated
Colour: Yellow
Compatible With: SlotPro 4 Series 80 x 80 extrusions only

Fixings Required:
• 4 x 3.04.R.SP8, 4 Series M8 Roll In Slot Nut with Spring
• 4 x CHM8016, M8 x 16 Cap Screw
• 4 x WSM408, M8 Spring Washer

Key Features:
• Heavy duty steel footplate for 1Guard upright supports
• Large 200 x 200mm base for increased floor support
• Yellow powder coated finish for increased visibility
• Pre drilled holes for secure floor mounting
• Suitable for 80 x 80 vertical SlotPro extrusions only
• Available with or without fixings

Installation Tip:
Position the footplate at the required panel centres and secure it to the floor using suitable floor anchors. Fit the 80 x 80 upright profile to the footplate using the profile fixing hardware, then tighten securely.

Note:
This product is suitable for 80 x 80 SlotPro extrusions only. It is available with or without the fixing hardware required to secure the footplate to the 80 x 80 upright profile. Please select your preferred option when ordering. Floor anchors are not included.

Includes:
• 1 x 200 x 200mm powder coated yellow steel footplate
• 80 x 80 upright profile fixing hardware, included or excluded depending on the option selected

Common Applications:

• 1Guard safety guarding systems
• Large machine guarding layouts
• Tall vertical safety barriers
• Factory partition walls
• Industrial safety fencing
• Floor mounted 80 x 80 aluminium uprights

Need Design Help or Customisation?
SlotPro offers a full cut and mill service for tailored safety systems. Contact our team for layout advice or component compatibility.
📞 0800 00 28 32
📧 [email protected]
