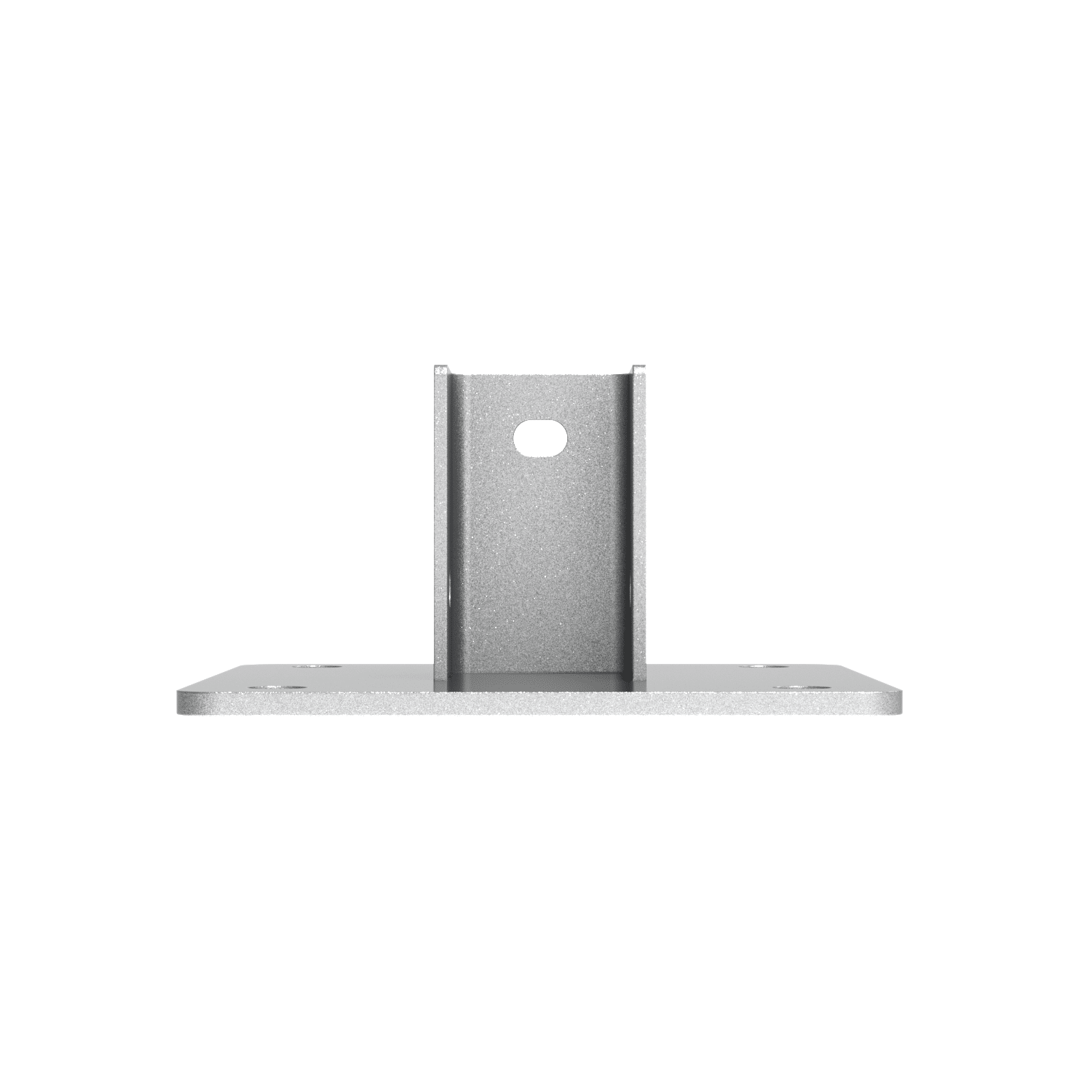

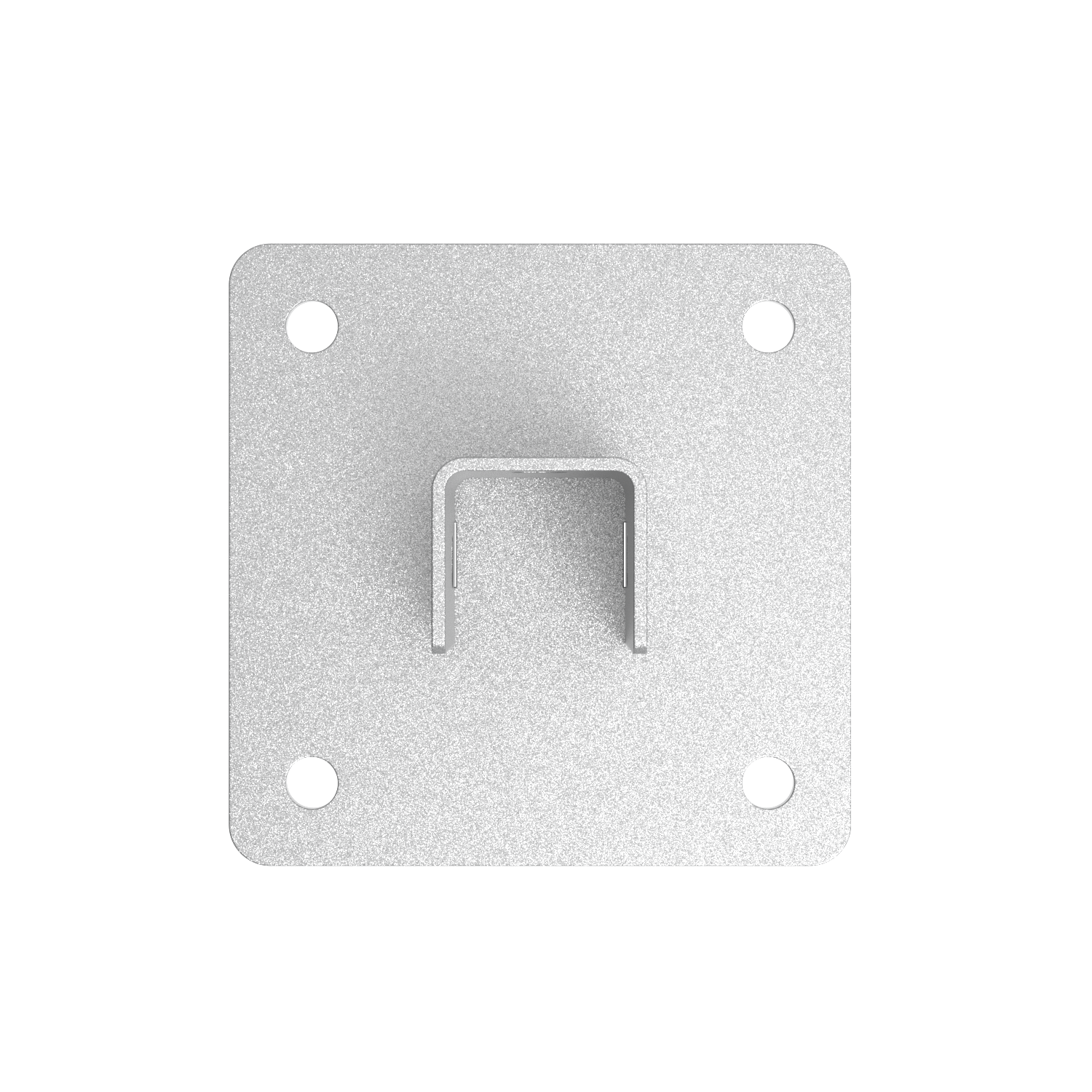

1Guard 150 x 150 Stainless Steel Foot

1Guard 150 x 150 Stainless Steel Foot is a heavy duty stainless steel baseplate used to support vertical SlotPro aluminium extrusions in 1Guard safety guarding layouts. The 150 x 150mm footprint provides a stable floor mounted base for 40 x 40 upright profiles used in mesh guarding panels, equipment enclosures, and modular safety barriers.

1Guard 150 x 150 Stainless Steel Foot is suited to demanding industrial and hygienic environments where corrosion resistance is required. The stainless steel construction makes it suitable for washdown areas, food and beverage production, and other guarding layouts where a durable anchored upright support is needed.

Product Name: 1Guard 150 x 150 Stainless Steel Foot
Product Code: 1G.1515.FPSS
Material: Stainless steel
Colour: Silver
Compatible With: SlotPro 4 Series 40 x 40 extrusions only

Fixings Required:
Suitable floor anchors and 40 x 40 profile fixing hardware.

Key Features:
• Heavy duty stainless steel footplate for 1Guard upright supports
• 150 x 150mm footprint for stable floor mounting
• Corrosion resistant construction for demanding environments
• Pre drilled holes for secure floor anchor installation
• Suitable for washdown and hygienic work areas
• Designed for 40 x 40 vertical SlotPro extrusions only
• Available with or without fixings

Installation Tip:
Position the footplate at the required panel centres, fasten it securely to the floor using suitable floor anchors, then install the 40 x 40 upright profile and tighten the fixing hardware as required.

Note:
This product is only suitable for 40 x 40 SlotPro extrusions. It is available with or without fixings. Please select your preferred option when ordering.

Includes:
• 1 x 150 x 150mm stainless steel footplate
• Fixings included or excluded, depending on the option selected

Common Applications:
• 1Guard safety guarding systems
• Food and beverage production areas
• Washdown facilities
• Mesh guarding panel supports
• Industrial safety barriers
• Equipment enclosures
• Floor mounted 40 x 40 aluminium uprights

Need Design Help or Customisation?
SlotPro offers a full cut and mill service for tailored safety systems. Contact our team for layout advice or component compatibility.
