Description

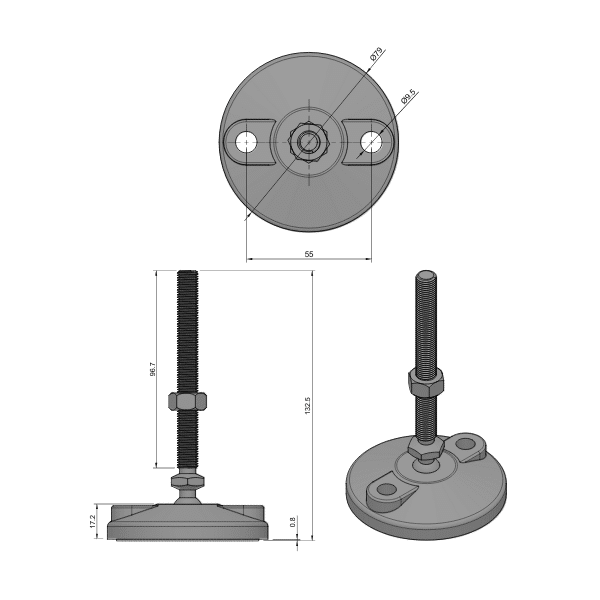

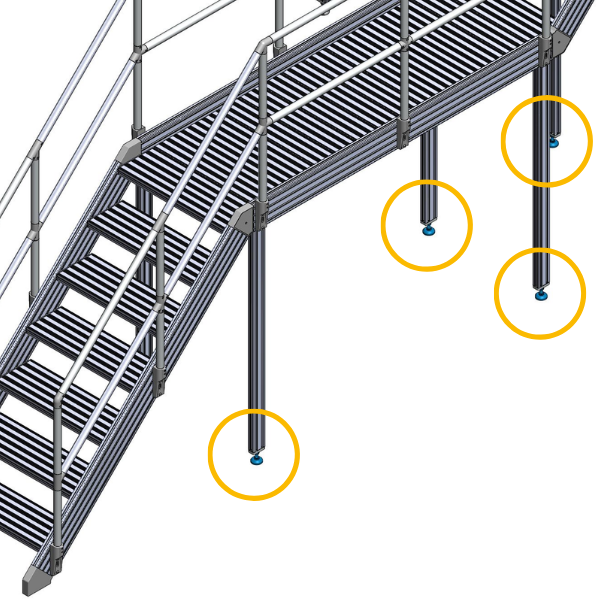

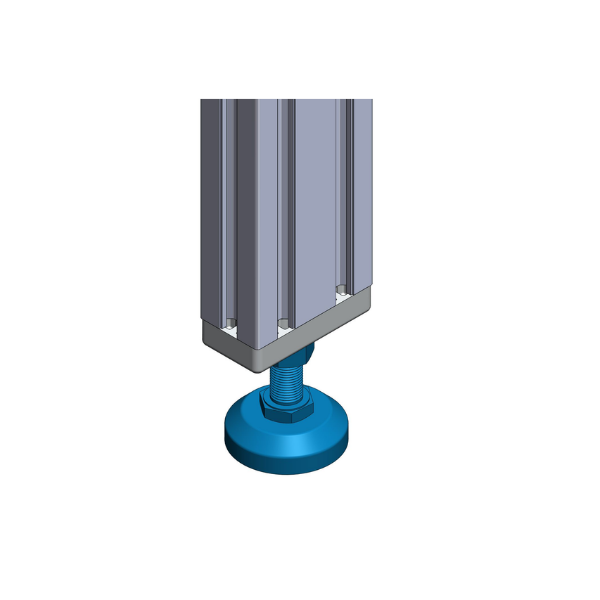

Articulated Foot M10 x 80 304 Stainless Steel is an adjustable foot suitable for levelling conveyors and machines. It comes complete with bolt holes in the foot to fix to the floor and an anti-slip pad. Suitable for medium conveyors and assemblies.

Download the CAD file for this product in .step format here.

Product Code: 6.04.SPAF80

Thread: M10

Shaft Length: 100mm

Base Diameter: 100mm

Material: Nylon PA, Glass ball reinforced. Spindle is stainless steel
