Description

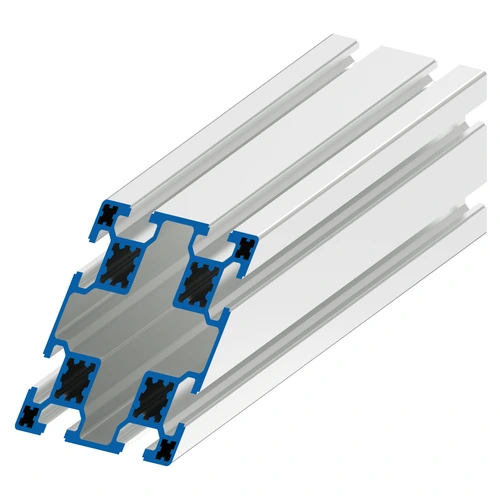

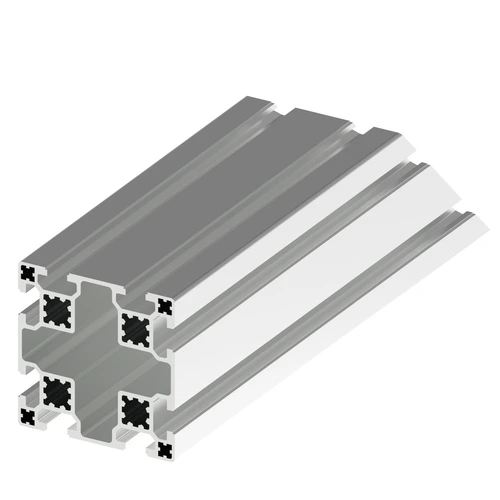

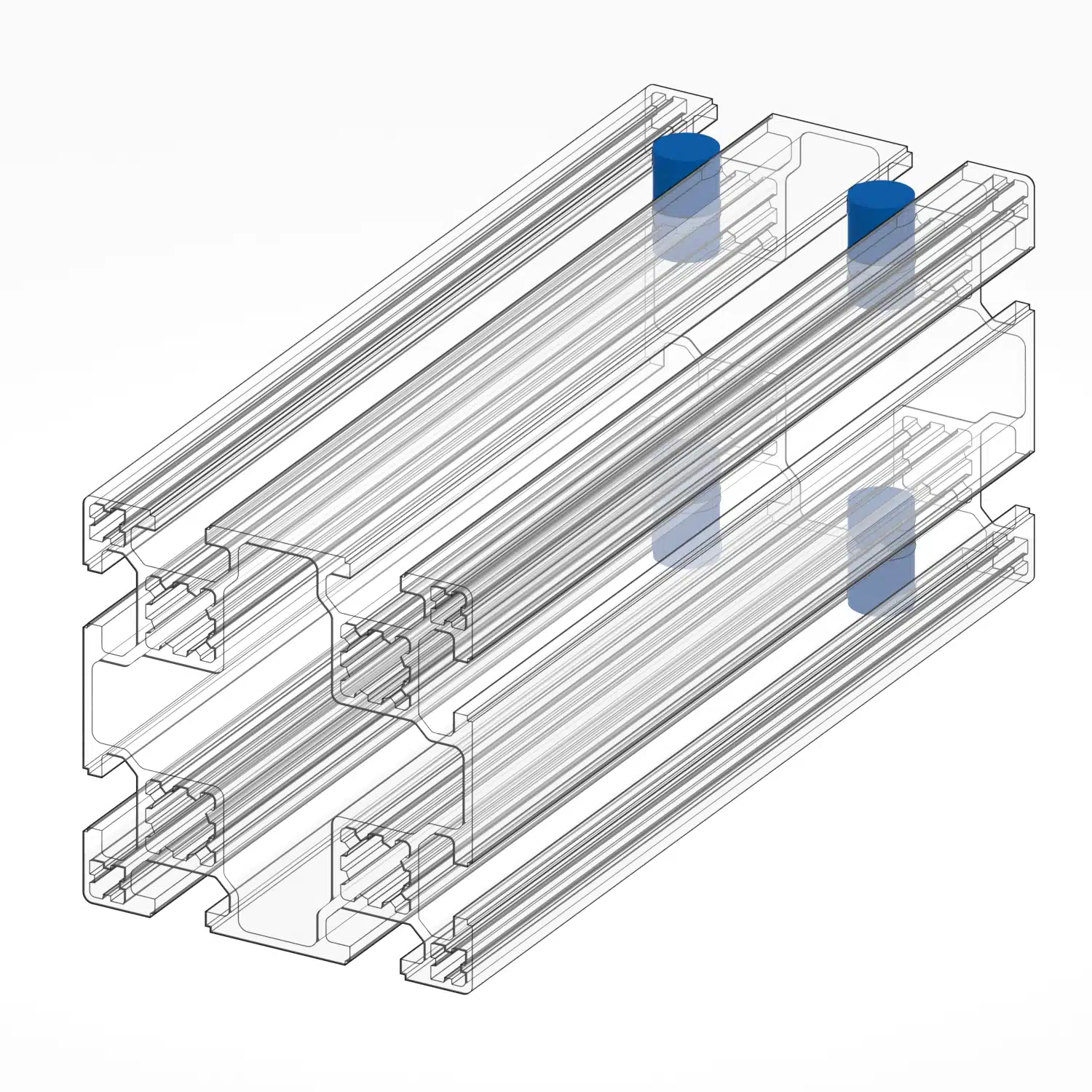

80 x 80 SlotPro 8 Slot Standard Extrusion is a 4 Series T-slot profile with a 10mm T-slot, 2 slots on each face. The surface of the profile is resistant to dirt and debris buildup because it is smooth and easy to clean. The 80mm x 80mm T-slot profile is compatible with the 4 series connectors and other components. The 80mm x 80mm profile is an all-round heavy-duty aluminium extrusion and is a great choice for machine frames and guards, workstations, displays and other medium and heavyweight applications. The eight open T-slots are useful for mounting SlotPro components and accessories.
Download the CAD file for this product in .step format here.
- Product Code: 1.0808.8.SPSS
- Series: 4 Series
- Material: Aluminium
- Grade: 6063T5
- Finish: Anodised
- Colour: Silver
- KG/M: 4
- Length: Priced per MM, available in any length over 10mm and under 5800mm.
- Common Uses: Heavyweight assemblies such as machine frames, workstations, safety guarding, displays and automation applications including conveyors.
