Description

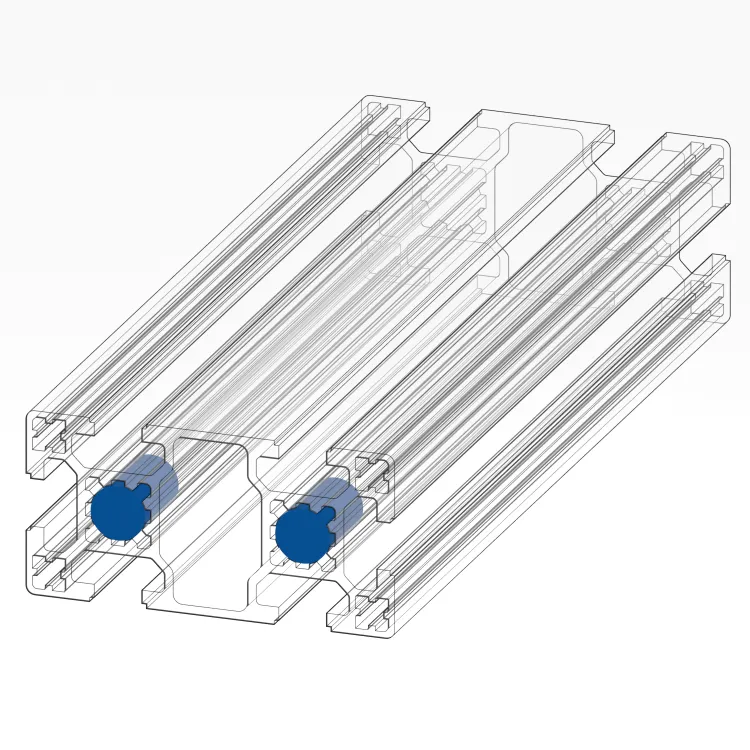

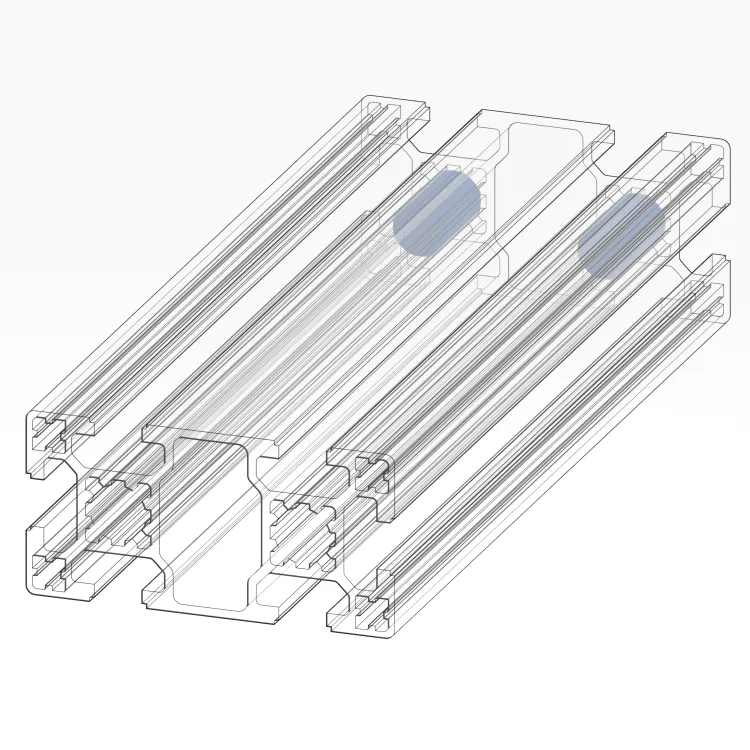

40 x 80 SlotPro 6 Slot Standard Extrusion is a 4 Series aluminium T slot profile featuring six 10mm T slots, with one on each 40mm face and two on each 80mm face. This layout provides maximum flexibility for mounting panels, brackets, and accessories in all directions. The smooth anodised surface is corrosion resistant and easy to clean, making it ideal for industrial environments.
The 40 x 80 SlotPro 6 Slot Standard Extrusion is fully compatible with SlotPro 4 Series connectors and is a robust choice for heavy duty modular builds.
Product Code: 1.0408.6.SPRS
Series: 4 Series
Material: Aluminium
Grade: 6063T5
Finish: Anodised
Colour: Silver
KG/M: 2.5
Length: Priced per mm, available in any length over 10mm and under 5800mm
Key Features:
• 6 open 10mm T slots for multi directional assembly
• Durable anodised finish resists wear and debris
• Compatible with SlotPro 4 Series accessories and connectors
• Excellent rigidity for structural applications
• Ideal for large assemblies and automation projects
Common Applications:
• Machine guarding and structural frames
• Workstations and ergonomic benches
• Modular automation systems
• Displays, enclosures, and barriers
• Conveyor bases and production lines
Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or custom extrusion lengths.
