Description

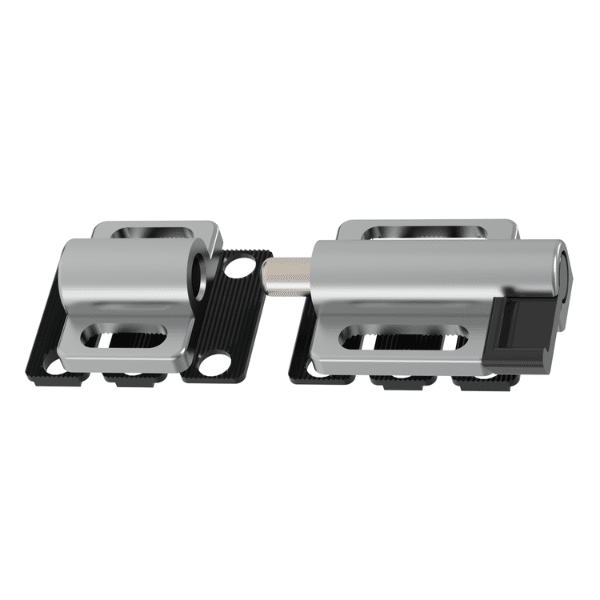

4 Series SlotPro Door Latch is a spring-loaded latch designed for secure closure of access doors, flaps, and hinged panels in modular aluminium frameworks. It provides a flush-fit solution for 4 Series profiles and is ideal for guarding systems, cabinets, and enclosures where clean aesthetics and quick latching are important.
The latch features a zinc die-cast wing body, glass fibre reinforced PA locking lever, and steel internal mechanism. With a black powder coated finish and 700 N load rating, the 4 Series SlotPro Door Latch offers a durable and reliable fastening solution for industrial environments.
Product Code: 4.04.SPDL
Material:
• Wings – Zinc die-cast
• Locking Lever – Plastic PA, glass fibre reinforced
• Mechanism – Steel, black zinc plated (RoHS conform)
• Finish – Black powder coated
Load Rating: 700 N
Compatible With: 4 Series
Fixings Required:
• 4 x 3.04.R.SP8 – Roll in T Nut with Spring M8
• 4 x M8 x 16 Cap Screw
Key Features:
• Spring-loaded latch for quick and secure closure
• Flush fit with 4 Series aluminium profiles
• Clean finish with high strength and durability
• Ideal for industrial doors, guards, and enclosures
• Easy installation with standard SlotPro fixings
Common Applications:
• Modular door and flap closures
• Machine guards and access panels
• Display and cabinet enclosures
• Hinged panels in aluminium frames
• Industrial and workshop structures
Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or custom extrusion lengths.
