4 Series Magnetic Catch Angle Bracket

4 Series Magnetic Catch Angle Bracket is designed to mount a magnetic catch to SlotPro aluminium profiles. It positions the catch at a 90 degree offset, helping it line up with the strike plate for steady closure on swing doors, access panels, and guarding frames.

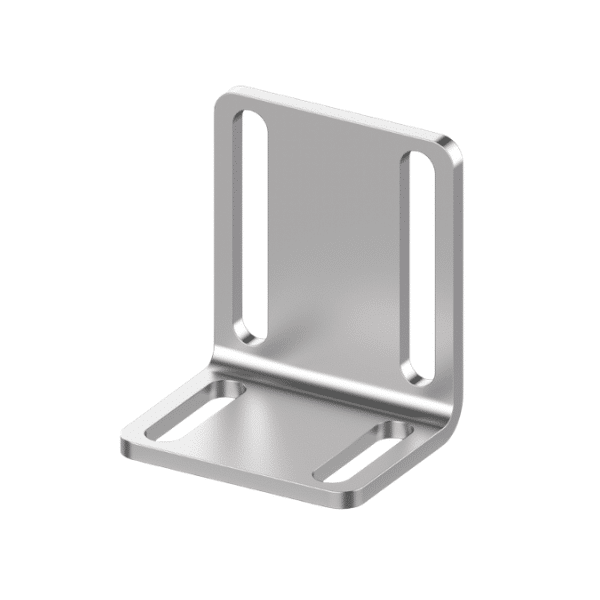

4 Series Magnetic Catch Angle Bracket is made from die cast zinc with a clean silver finish. This bracket suits both 3 Series and 4 Series SlotPro Extrusion and Profile builds, making it a practical hardware option for modular frames, machine guarding, and industrial access points.

Product Name: 4 Series Magnetic Catch Angle Bracket
Product Code: 6.04.SPMCB
Series: 4 Series
Material: Die cast zinc
Finish: Silver
Compatible With: All 3 Series and 4 Series SlotPro profiles

Fixings Required:
• 2 x 3.04.R.SP6, 4 Series M6 Roll In Slot Nut with Spring
• 2 x CHM6012, M6 x 12 Cap Screw
• 2 x WSM406, M6 Spring Washer

Installation Tip:

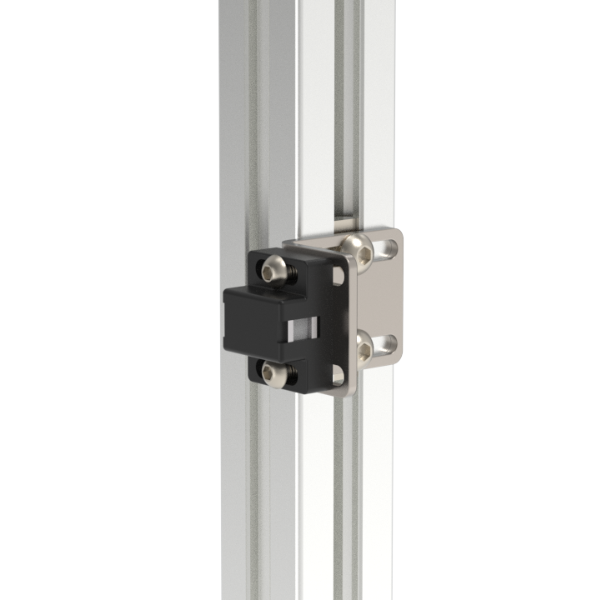

Install the angle bracket loosely into the 4 Series profile slot using the M6 roll in slot nuts, cap screws and spring washers. Adjust the magnetic catch position against the strike plate, check alignment and operation, then tighten the fixings securely.

Key Features:
• Offset bracket for magnetic catch mounting
• Helps align the magnetic catch with the strike plate
• Compatible with SlotPro 3 Series and 4 Series profiles
• Low bulk design for a clean finished appearance
• Die cast zinc construction with a silver finish

Common Applications:
• Machine guarding doors
• Safety enclosures with magnetic latches
• Modular frame assemblies
• Workshop and industrial access panels
• Swing doors on SlotPro aluminium frames
