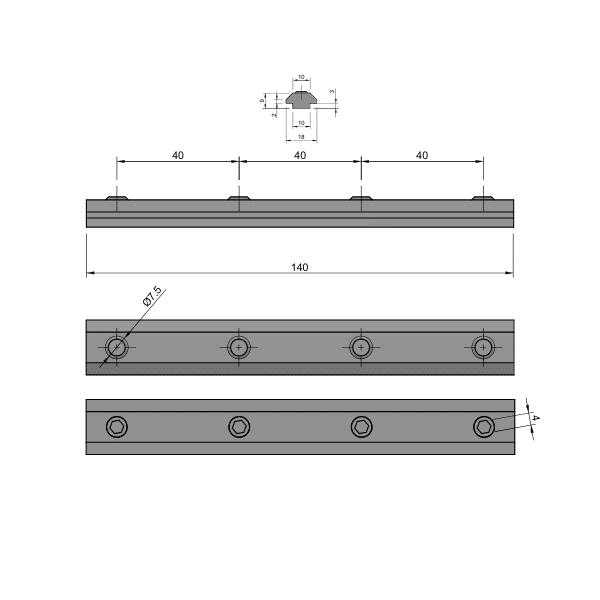

4 Series Linear Connector Set

4 Series Linear Connector Set is a simple internal joining set designed to connect two SlotPro 4 Series aluminium profiles in a straight line. The connector bar slides into the T slot of each profile and is secured with grub screws, creating a neat inline connection without external brackets.

4 Series Linear Connector Set is suited to 4 Series SlotPro extrusion frames where longer runs or continuous frame sections are required. It is easy to install, adjust, and reuse, making it a practical option for modular structures, workstations, machine frames, and workshop builds.

Product Name: 4 Series Linear Connector Set
Product Code: 2.04.SPLC
Series: 4 Series
Material: Zinc plated steel
Weight: 0.132 kg
Compatible With: 4 Series SlotPro extrusions

Fixings Included:
• 4 x M6 x 8 Grub Screw

Installation Tip:
Slide the linear connectors evenly into both 4 Series profiles, align the frame sections, then tighten the M6 x 8 grub screws evenly to lock the connection in place.

Key Features:
• Connects two profiles in a straight inline configuration
• Internal fastening method for a clean external appearance
• No milling or machining required
• Zinc plated steel construction for strength and corrosion resistance
• Easy to assemble, adjust, and reuse
• Suitable for extending 4 Series aluminium profile frames

Common Applications:
• Extending aluminium profile lengths
• Continuous framework construction
• Workstations and machine frames
• Display and exhibition structures
• Modular industrial assemblies

Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or help selecting the right components for your build.
