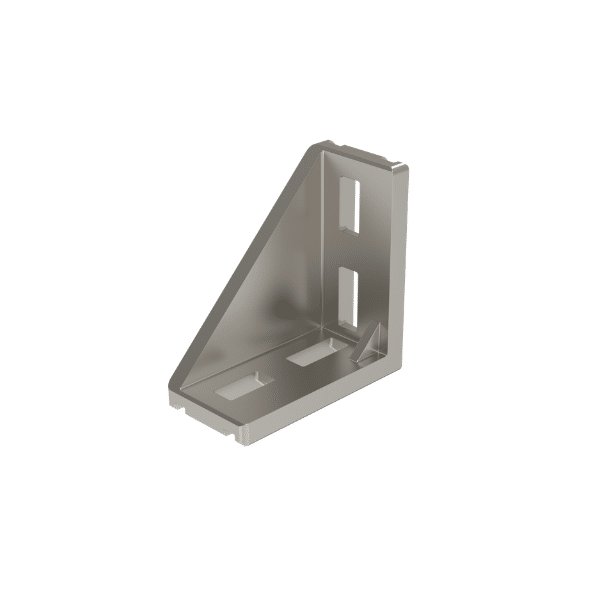

4 Series 40 x 80 Angle Bracket

4 Series 40 x 80 Angle Bracket is a heavy-duty die cast zinc bracket used to create strong 90 degree corner connections between SlotPro 4 Series 40 x 80 aluminium profiles. Mounted externally across the joint, it provides excellent support for load-bearing frames, guarding systems, workstations, and industrial assemblies.

4 Series 40 x 80 Angle Bracket is designed for applications where additional strength is required around larger extrusion joins. Its robust die cast zinc construction delivers long-term durability and corrosion resistance, making it suitable for demanding industrial environments where secure profile connections are needed.

Product Name: 4 Series 40 x 80 Angle Bracket
Product Code: 6.04.SPB48
Series: 4 Series
Material: Die Cast Zinc
Compatible With: 4 Series 40 x 80 SlotPro extrusion

Fixings Required:
• 4 x 3.04.R.SP8, 4 Series Roll in Slot Nut with Spring M8
• 4 x M8 x 20 Button Screw

Key Features:
• Creates rigid 90 degree joins for 40 x 80 profiles
• External bracket design for increased joint stability
• Die cast zinc construction for strength and corrosion resistance
• Ideal for heavy-duty frame assemblies
• Uses standard M8 SlotPro fixing hardware
• Suitable for larger extrusion corner connections

Installation Tip:
Insert M8 roll in slot nuts into the profile slots and position the bracket across the corner joint. Secure using M8 x 20 button screws and check that the profiles are correctly aligned before final tightening.

Common Applications:
• Machinery frames and equipment bases
• Aluminium racking systems
• Safety guarding and enclosures
• Modular industrial frameworks
• Heavy-duty workstations and benches
• Load-bearing profile connections

Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or help selecting the right components for your build.
