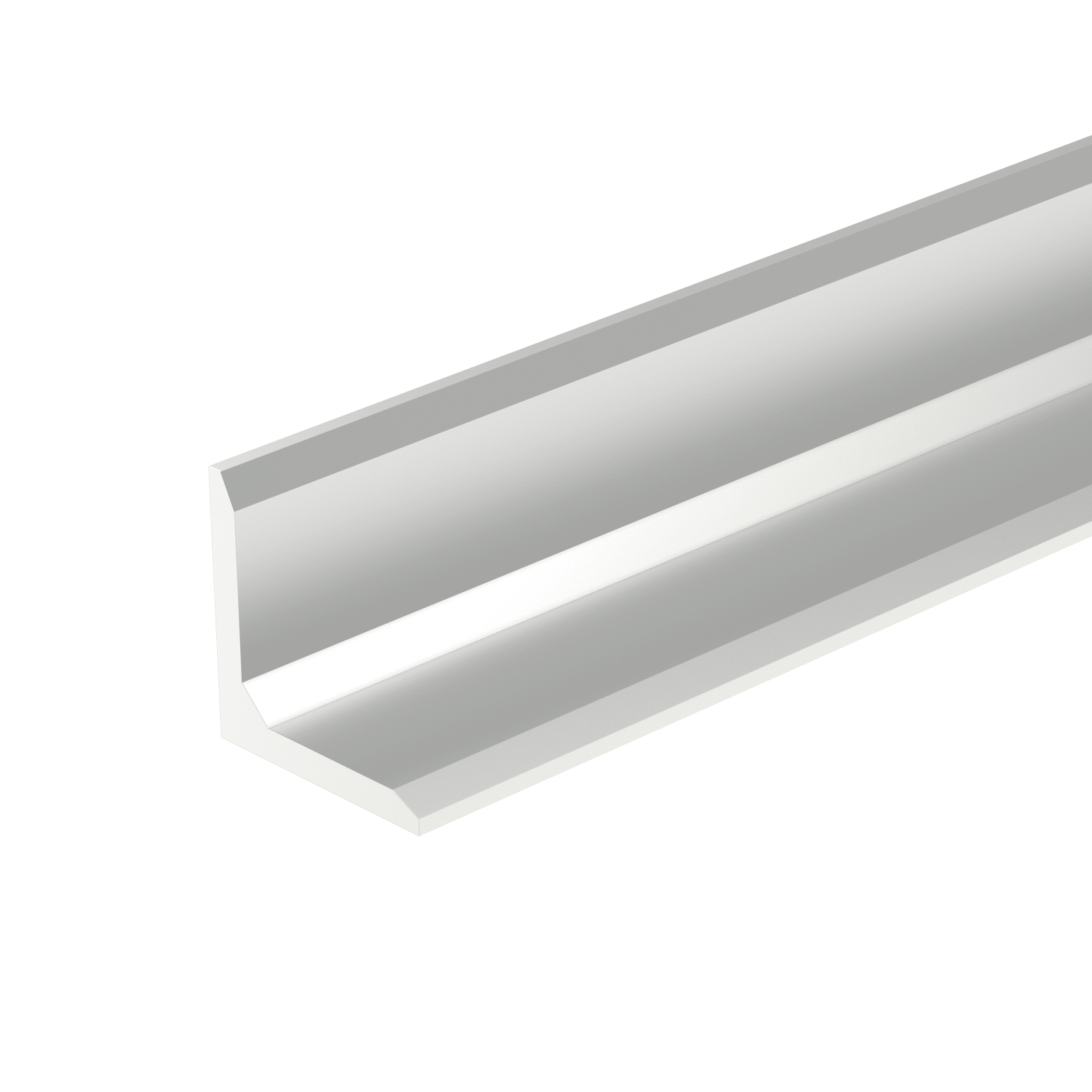

4 Series 40 x 40 Aluminium Equal Angle

4 Series 40 x 40 Aluminium Equal Angle is a versatile 90 degree L shaped aluminium profile measuring 40mm x 40mm. This equal angle extrusion is suited to frame edging, corner protection, reinforcement, and general support work across industrial and architectural applications.

4 Series 40 x 40 Aluminium Equal Angle can be used with SlotPro 4 Series systems or as a standalone aluminium profile where strength, clean lines, and corrosion resistance are required. Supplied in a silver anodised finish, it is available cut to length for custom frame and fabrication projects.

Product Name: 4 Series 40 x 40 Aluminium Equal Angle
Product Code: 1.0404.0.SPEA
Series: 4 Series
Material: Aluminium
Grade: 6063T5
Finish: Anodised
Colour: Silver
Length: Priced per mm, available in any length over 10mm and under 5800mm
KG/M: 1.5
Compatible With: SlotPro 4 Series systems and general aluminium framing projects

Key Features:
• 40mm x 40mm equal angle profile
• 90 degree L shaped aluminium extrusion
• Lightweight construction with strong corner support
• Suitable for frame edging, bracing, and reinforcement
• Available cut to length to suit your project

Installation Tip:
Select the required length when ordering. For fixing holes or mounting points, confirm hole spacing and edge clearance before drilling or machining.

Common Applications:
• Frame edge reinforcement
• Corner bracing and supports
• Machinery and equipment framing
• Display structures and workstations
• Industrial and architectural builds

Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or help selecting the right components for your build.
