Description

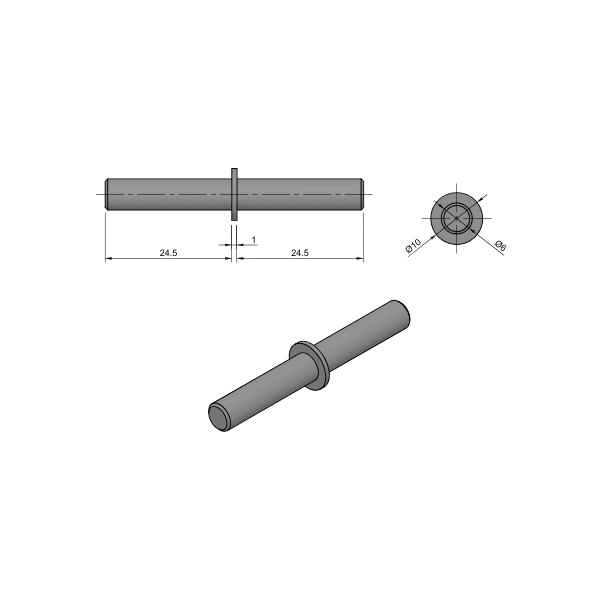

SlotPro Stainless Steel Hinge Pin is required to complete a full wing hinge system. This Wing Hinge Pin fits with all wing hinges from all the series. See fixings required for specific part numbers.

SlotPro provides a cut and mill service. For custom lengths or design assistance please don’t hesitate to contact us: 0800 00 28 32 or sales@slotpro.nz

Download the CAD file for this product in .step format here.

Product Code: 4.04.WHP

Material: Stainless Steel

Fixings Required to make 1 hinge:

  • 2 x 4.0X.WH – Wing hinge 2, 3 or 4 Series
  • 1 x 4.04WHP – Wing hinge pin
  • 2 x 4.04.WHCC – Wing hinge cover cap
  • 4 x Roll in slot nuts or T nuts
  • 4 x Countersink screws

Compatible with: All 4 Series SlotPro Extrusions and Accessories
