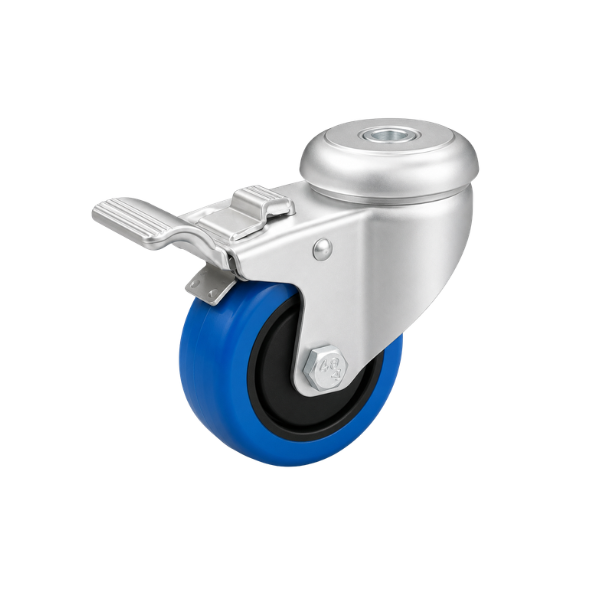

Bolt Hole Fitting Castor Blue – 75mm

Bolt Hole Fitting Castor Blue – 75mm is a swivel bolt hole castor for adding mobility to SlotPro aluminium extrusion frames, trolleys, benches, carts, and light duty mobile assemblies. The 75mm elastic rubber wheel provides a compact wheel size while still giving practical movement for workshop and production floor builds.

Bolt Hole Fitting Castor Blue – 75mm includes a brake for holding the frame in position when required. It is a useful accessory for mobile SlotPro projects where smooth rolling, non marking wheel material, and compact overall height are important.

Product Name: Bolt Hole Fitting Castor Blue – 75mm
Product Code: WCB75/H-TB
Material: Steel castor frame with elastic rubber wheel
Colour: Blue
Diameter: 75mm
Max Load: 80kg per castor
Compatible With: Suitable SlotPro aluminium extrusion frame assemblies

Fixings Required for Side Mounting:
• 1 x HHM10020, M10 x 20 Hex Bolt

Fixings Required for End Mounting:
• 1 x BHM410030S, M10 x 30 Hex Bolt

Installation Tip:
Confirm the total frame load, floor surface and mounting position before fitting. For side mounting, secure the castor using the M10 x 20 hex bolt. For end mounting, use the M10 x 30 hex bolt. Ensure the castor is securely fitted and correctly aligned before placing the frame under load.

Key Features:
• 75mm elastic rubber wheel
• Swivel bolt hole fitting with brake
• 80kg load rating per castor
• Non marking wheel material
• Ball bearing wheel for smoother movement
• Suitable for mobile SlotPro frame assemblies

Common Applications:
• Mobile SlotPro frames
• Workshop trolleys
• Movable benches
• Light duty carts
• Display frames
• Aluminium extrusion assemblies
