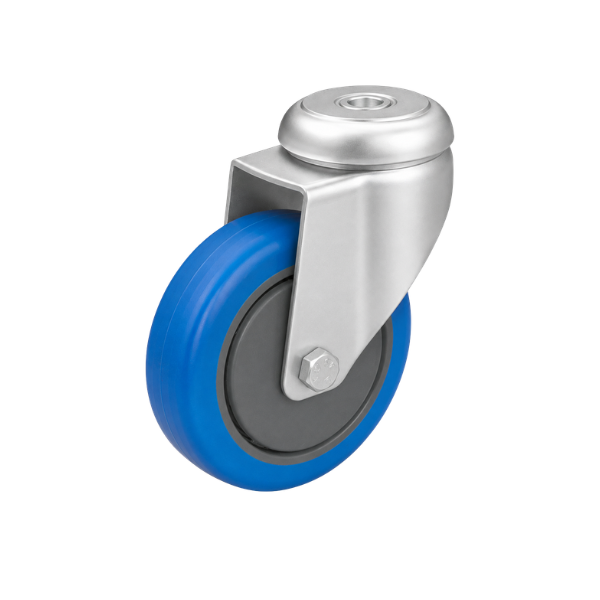

Bolt Hole Fitting Castor Blue – 100mm

Bolt Hole Fitting Castor Blue – 100mm is a swivel bolt hole castor used to add mobility to SlotPro aluminium extrusion frames, trolleys, carts, and mobile workstations. The 100mm elastic rubber wheel provides a larger rolling diameter for easier movement across workshop, warehouse, and production floor areas.

Bolt Hole Fitting Castor Blue – 100mm includes a brake for holding the frame in position when needed. The elastic rubber wheel is suited to medium duty mobile frame builds where non marking performance, shock absorption, and smooth movement are useful.

Product Name: Bolt Hole Fitting Castor Blue – 100mm
Product Code: WCB100/H-TB
Material: Steel castor frame with elastic rubber wheel
Colour: Blue
Diameter: 100mm
Max Load: 100kg per castor
Compatible With: Suitable SlotPro aluminium extrusion frame assemblies

Fixings Required for Side Mounting:
• 1 x HHM10020, M10 x 20 Hex Bolt

Fixings Required for End Mounting:
• 1 x BHM410030S, M10 x 30 Hex Bolt

Installation Tip:
Check the castor mounting position, frame load and floor surface before fitting. For side mounting, secure the castor using the M10 x 20 hex bolt. For end mounting, use the M10 x 30 hex bolt. Tighten securely and check the castor is correctly aligned before placing the frame under load.

Key Features:
• 100mm elastic rubber wheel
• Swivel bolt hole fitting with brake
• 100kg load rating per castor
• Non marking wheel material
• Ball bearing wheel for smooth movement
• Suitable for mobile SlotPro frames and workstations

Common Applications:
• Mobile workstations
• Workshop trolleys
• Aluminium extrusion carts
• Movable frames
• Warehouse frame builds
• Custom SlotPro assemblies
