Description

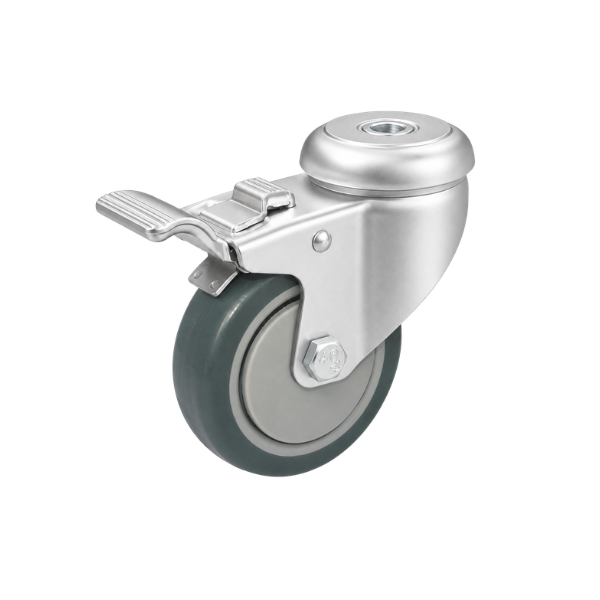

Bolt Hole Fitting Castor Black – 100mm is a swivel bolt hole castor used to add mobility to SlotPro aluminium extrusion frames, workstations, trolleys, carts, and mobile workshop builds. The 100mm rubber wheel gives a larger rolling diameter for easier movement across typical indoor floors.
Bolt Hole Fitting Castor Black – 100mm includes a brake to help hold the frame in position during loading, setup, or general work. It is suited to medium duty mobile frames where a non marking rubber wheel and strong steel castor frame are required.
Product Name: Bolt Hole Fitting Castor Black – 100mm
Product Code: WCR100H-TB
Material: Steel castor frame with rubber wheel
Colour: Black
Diameter: 100mm
Max Load: 100kg per castor
Compatible With: Suitable SlotPro aluminium extrusion frame assemblies
Fixings Required:
M10 or M12 bolt, depending on selected bolt hole size, with suitable mounting hardware to suit the frame design.
Key Features:
• 100mm rubber wheel
• Swivel bolt hole fitting with brake
• 100kg load rating per castor
• Non marking wheel material
• Ball bearing wheel for smooth movement
• Suitable for mobile workstations, trolleys, and carts
Installation Tip:
Check the mounting hardware, expected load, wheel position, and floor surface before installation. Fit the castor securely to a suitable mounting point on the frame.
Common Applications:
• Mobile workstations
• Workshop trolleys
• Movable machine frames
• Aluminium extrusion carts
• Display stands
• Custom mobile SlotPro builds
