Description

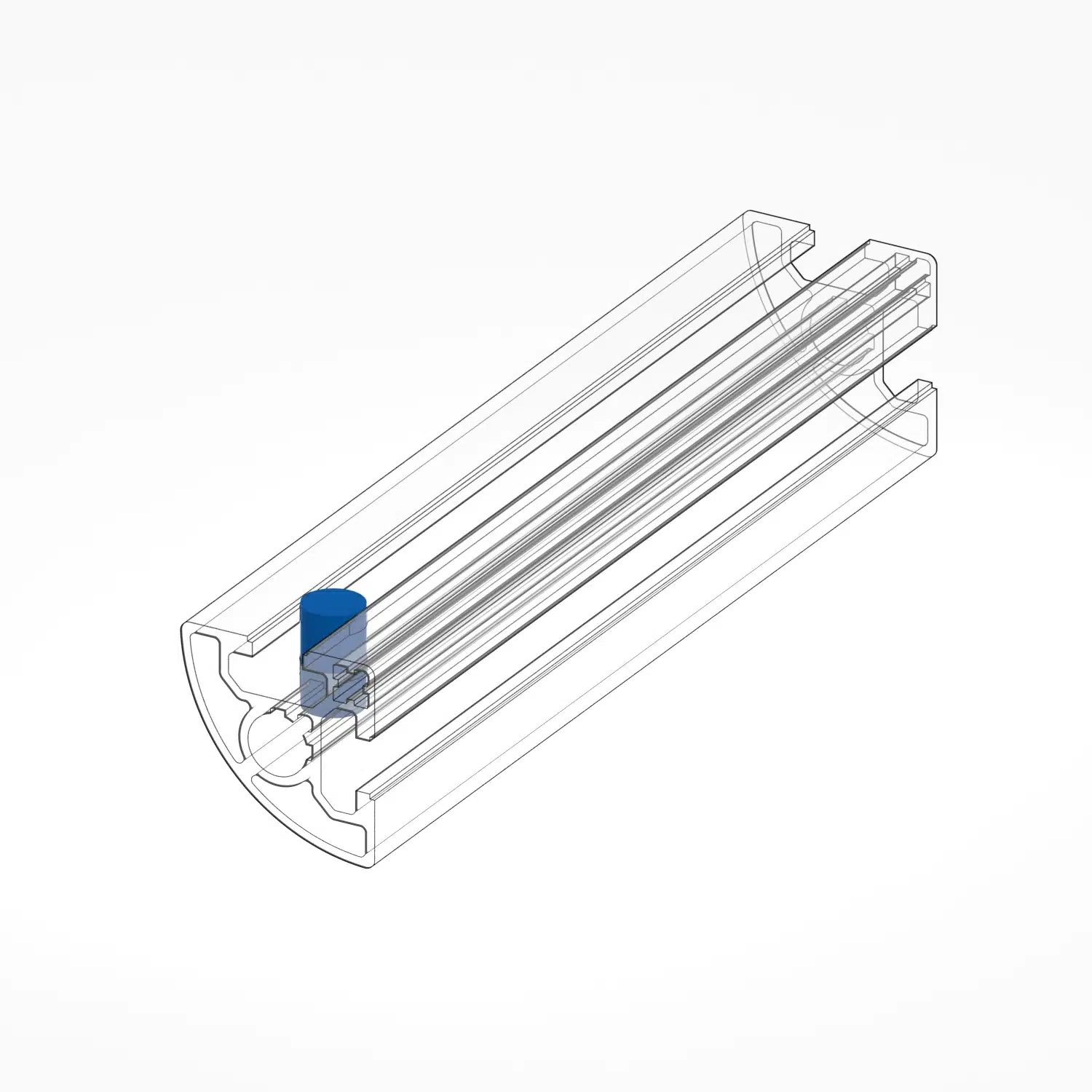

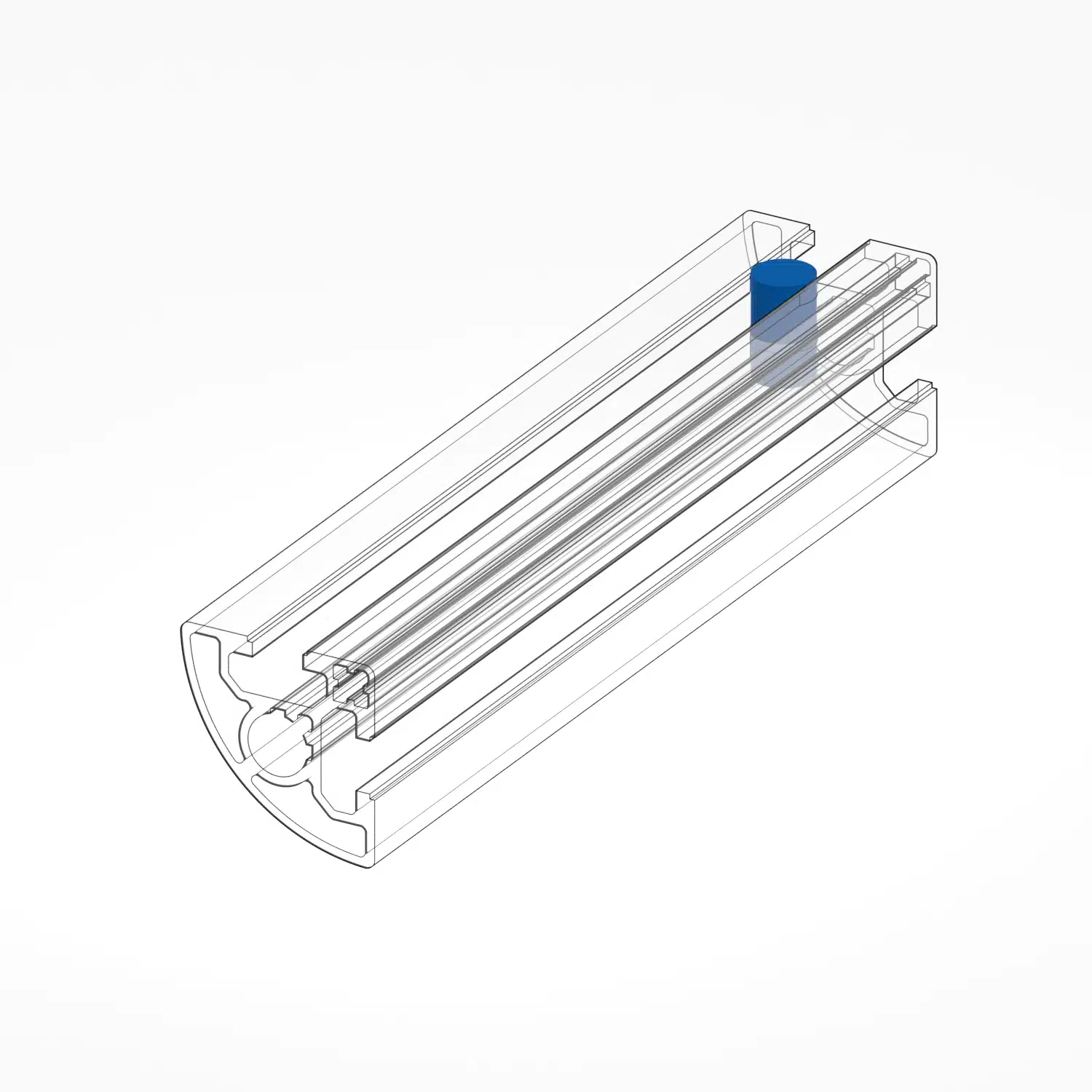

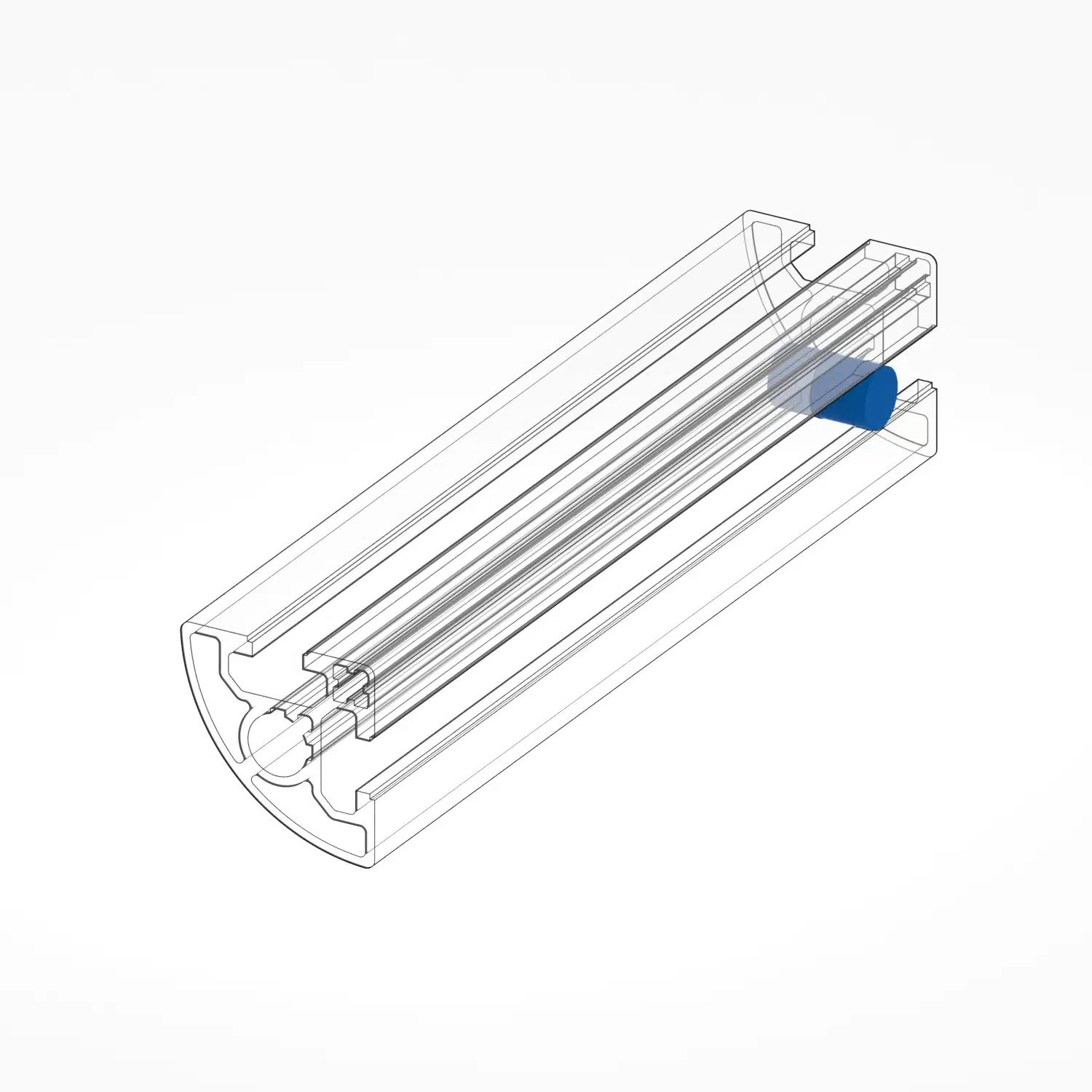

40 x 40 SlotPro 2 Slot 90 Deg Curved Extrusion is a 4 Series aluminium T slot profile designed for clean and curved assemblies. With two 10mm T slots on adjacent faces, this profile is ideal for constructing frames, guards, and corner structures where a rounded edge is preferred. The anodised surface is smooth, corrosion resistant, and easy to clean, making it suitable for both industrial and commercial environments.

The 40 x 40 SlotPro 2 Slot 90 Deg Curved Extrusion is fully compatible with SlotPro 4 Series connectors and accessories for streamlined modular builds.

Product Code: 1.0404.2.SPCS
Series: 4 Series
Material: Aluminium
Grade: 6063T5
Finish: Anodised
Colour: Silver
KG/M: 1.3
Length: Priced per mm, available in any length over 10mm and under 5800mm

Key Features:
• 2 open 10mm T slots on adjacent faces
• Curved 90 degree outer profile for clean corners
• Smooth anodised finish resists wear and debris
• Works with all SlotPro 4 Series components
• Ideal for both functional and aesthetic builds

Common Applications:
• Framing and ergonomic workstation design
• Protective guards and corner barriers
• Modular display structures
• Lightweight frames and panels
• Custom enclosures and equipment supports

Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or custom extrusion lengths.
