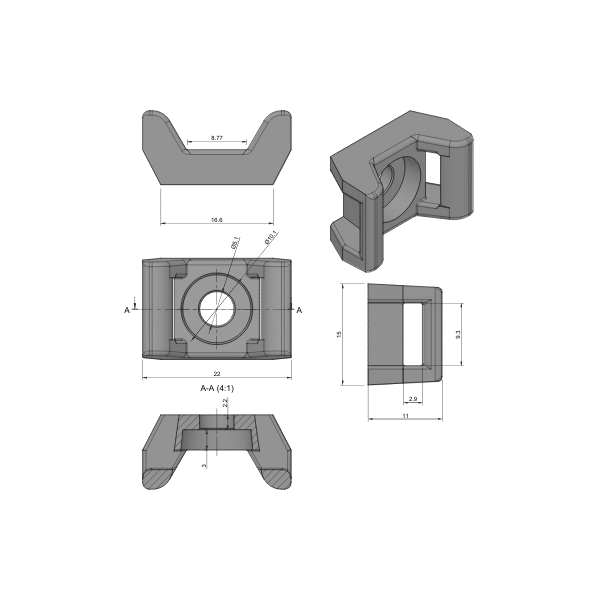

4 Series Universal Cable Binding Block

4 Series Universal Cable Binding Block is a mounting pad used to attach cable ties to SlotPro aluminium profiles for wire and cable management. This 4 Series Universal Cable Binding Block helps keep wiring, hoses, and cables organised on machine frames, workstations, guards, and modular assemblies.

The 4 Series Universal Cable Binding Block is compatible with 4 Series SlotPro profiles and is fixed into the T-slot using an M5 roll in slot nut and button head screw. It provides a simple mounting point for cable ties where cable routing needs to be clean, secure, and easy to maintain.

Product Name: 4 Series Universal Cable Binding Block
Product Code: 6.04.UCBB
Series: 4 Series
Material: Plastic PA, glass fibre reinforced
Compatible With: 4 Series SlotPro profiles

Fixings Required:
• 1 x 3.04.R.SP5, 4 Series Roll in Slot Nut M5
• 1 x M5 x 12 Button Head Screw

Key Features:
• Cable tie mounting pad for wire and cable management
• Suitable for SlotPro 4 Series aluminium profiles
• Glass fibre reinforced Plastic PA construction
• Fixed using an M5 roll in slot nut and button head screw
• Helps keep cables, hoses, and wiring organised
• Suitable for modular frames, guards, and workstations

Common Applications:
• Cable management on aluminium profile frames
• Machine guarding and enclosure wiring
• Workstations and assembly benches
• Conveyor and production line frames
• Control wiring and hose routing
• Modular machine structures

Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or help selecting the right cable management components for your build.
