Description

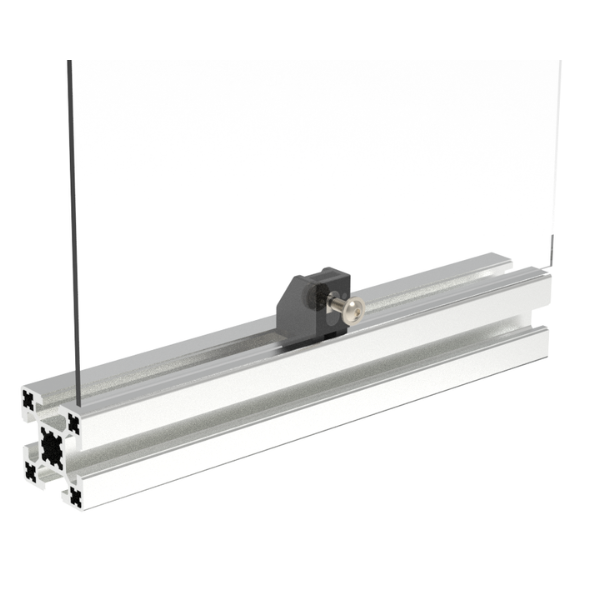

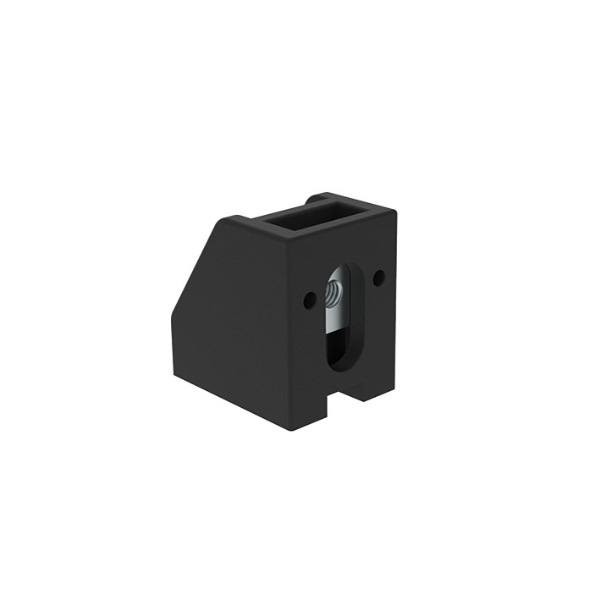

4 Series Uni Block is a black panel joining block used to connect panels to SlotPro aluminium profiles in 4 Series assemblies. This 4 Series Uni Block is suitable for joining panels and profiles of different sizes, making it a practical option for guards, enclosures, covers, and modular frame builds.

The 4 Series Uni Block includes a Plastic PA block and zinc plated steel nut, providing a simple fixing point for panel mounting on SlotPro profile frames. It is suitable for 4 Series applications where panels need to be attached neatly and securely to aluminium extrusions.

Product Name: 4 Series Uni Block
Product Code: 6.04.SPEH
Series: 4 Series
Material: Plastic PA glass fibre filled block, zinc plated steel nut
Colour: Black
Compatible With: 4 Series SlotPro profiles and extrusions

Fixings Required:
• 1 x 3.04.T.SP6, 4 Series M6 Threaded T Nut
• 1 x CHM6016, M6 x 16 Cap Screw

Installation Tip:

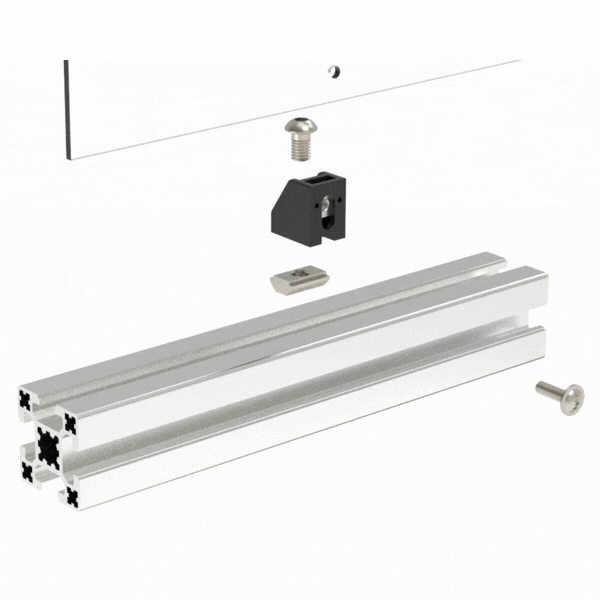

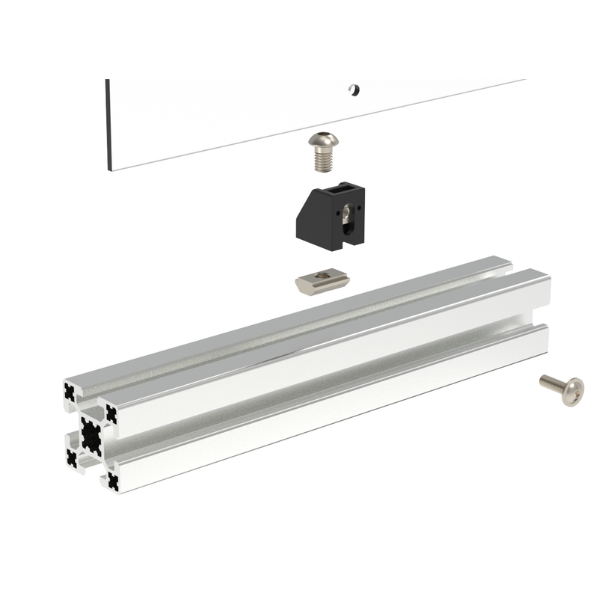

Insert the 3.04.T.SP6 M6 threaded T nut into the 4 Series profile slot and position the Uni Block at the required panel location. Align the panel with the block, then secure the Uni Block to the profile using the M6 x 16 cap screw. Check the panel position and alignment before final tightening.

Key Features:
• Panel joining block for 4 Series SlotPro profiles
• Suitable for joining panels and aluminium profiles of different sizes
• Black Plastic PA block
• Zinc plated steel nut
• Simple mounting option for panels, guards, and covers
• Suitable for modular aluminium profile assemblies

Common Applications:
• Machine guarding panels
• Aluminium profile enclosures
• Partition panels and covers
• Workstation screens
• Modular frame assemblies
• Industrial access panels

Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or help selecting the right panel mounting components for your build.
