Description

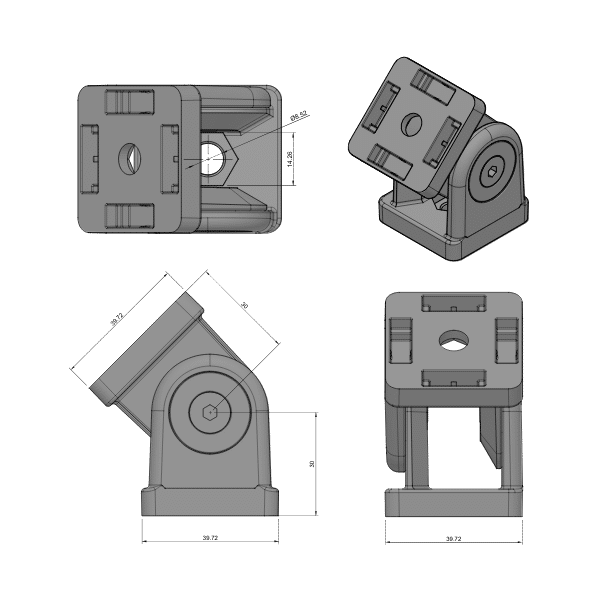

4 Series Pivot Joint 40mm is used to make a pivoting connection between two profiles or panels, with separate locating pins for slot 8 and 10mm. By tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position.

It is a lightweight yet sturdy, external fastening method.

SlotPro provides a cut and mill service. For custom lengths or design assistance please don’t hesitate to contact us: 0800 00 28 32 or [email protected]

Download the CAD file for this product in .step formatΒ here.

Product Code:Β 4.04.SPSJ

Material:Β Zinc die-cast

Finish:Β Alu colour laquered

Fixings Required:

  • 2 x 3.04.R.SP8 – 4 Series Roll in Slot Nut with Spring M8
  • 2 x M8 x 16 Cap Screw

Compatible with:Β All other 4 Series components and extrusions.
