Description

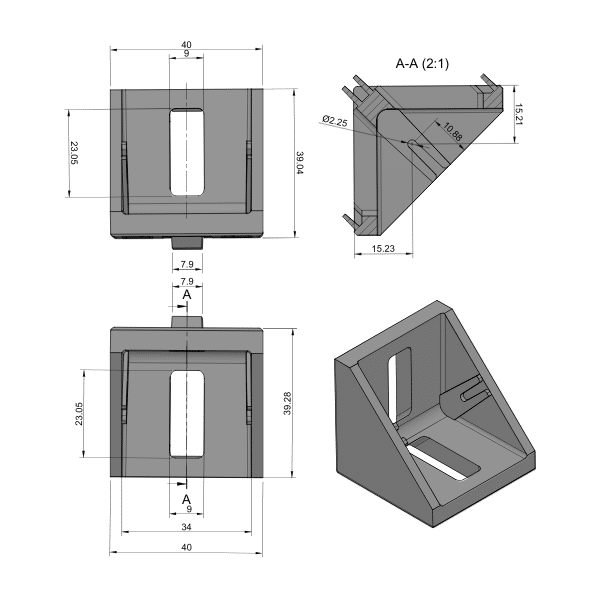

4 Series Angle Bracket for 40mm Extrusion is used to create strong 90 degree corner connections between SlotPro 4 Series aluminium profiles.

Product Code: 6.04.SPB40
Material: Die Cast Zinc
Compatible With: 4 Series 40×40 SlotPro Extrusion

This angle bracket is designed to connect 40×40 profiles at a 90 degree angle. It mounts externally and provides structural reinforcement for corner joints in frames, benches, guards, and enclosures. Made from die cast zinc, this bracket is corrosion-resistant and offers excellent strength in light to medium-duty structural applications.

The bracket’s design ensures a reliable connection between profiles while maintaining a clean, modular look. It is ideal for building simple frames or adding rigidity to larger builds. Because it mounts externally, it is also easy to install and reposition as required.

Fixings Required:

  • 2 x 3.04.R.SP8 – 4 Series Roll-in Slot Nut with Spring M8

  • 2 x M8 x 20 Button Screw

These fixings secure the bracket directly to the T-slot channels of the aluminium profiles.

Key Features:

  • Connects 4 Series 40x40mm profiles at 90 degrees

  • Made from die cast zinc for strength and durability

  • External mount for visible structural support

  • Fixes with standard M8 hardware (sold separately)

  • Ideal for small-to-medium frame assemblies

Applications:

  • 90 degree corners in aluminium frames

  • Modular machine guards and safety enclosures

  • T-slot benches, carts, and workstations

  • Lightweight racks and structures

  • Framing applications where external reinforcement is preferred

Installation Tip:
Insert roll-in slot nuts into both profiles and align the bracket across the joint. Use M8 x 20 button screws to secure the bracket into place using a 5mm hex key. Always check profile alignment before final tightening.

Why Use an External Angle Bracket?
While internal connectors offer a concealed joint, external angle brackets like this one offer visible reinforcement and increased rigidity. This makes them ideal for builds where strength is a priority, or where modularity and ease of access are important.
