4 Series 80 x 80 Angle Bracket

4 Series 80 x 80 Angle Bracket is a die cast zinc corner bracket used to connect SlotPro 4 Series aluminium profiles at 90 degrees. This external fastening method requires no milling and can be positioned anywhere along the profile T-slot, making it suitable for adjustable and reusable frame assemblies.

4 Series 80 x 80 Angle Bracket includes dual support for added strength, while the slotted holes allow greater adjustment during installation. It is ideal for large frames, heavy-duty guards, workstations, and structural aluminium assemblies where strong extrusion corner connections are required.

Product Name: 4 Series 80 x 80 Angle Bracket
Product Code: 6.08.SPB80
Series: 4 Series
Material: Die Cast Zinc
Compatible With: 4 Series SlotPro standard extrusion

Fixings Required:
• 8 x 3.04.R.SP8, 4 Series Roll in Slot Nut with Spring M8

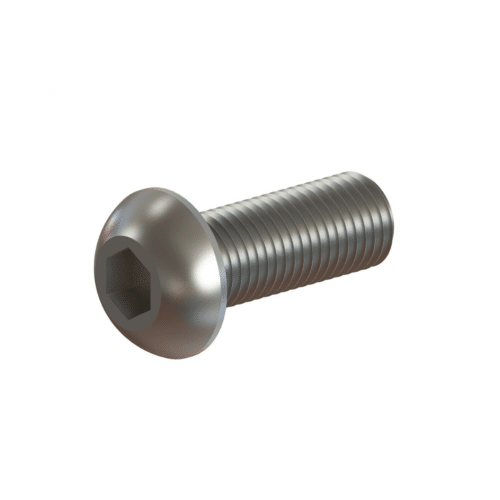

• 8 x M8 x 20 Button Screw

Key Features:
• Connects two aluminium profiles at 90 degrees
• No milling required for installation
• Dual support design for added strength
• Slotted holes allow greater positioning adjustment
• External bracket design for strong visible support
• Suitable for large 4 Series extrusion assemblies

Installation Tip:
Insert M8 roll in slot nuts into the profile slots and position the bracket across the 90 degree joint. Adjust the bracket through the slotted holes, then secure with M8 x 20 button screws once the profiles are correctly aligned.

Common Applications:
• Heavy-duty aluminium frames
• Machine guards and safety enclosures
• Industrial workstations and benches
• Modular racking and support structures
• Large profile assemblies requiring rigid 90 degree corners

Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or help selecting the right components for your build.
