4 Series 60mm Adjustable Foot Base

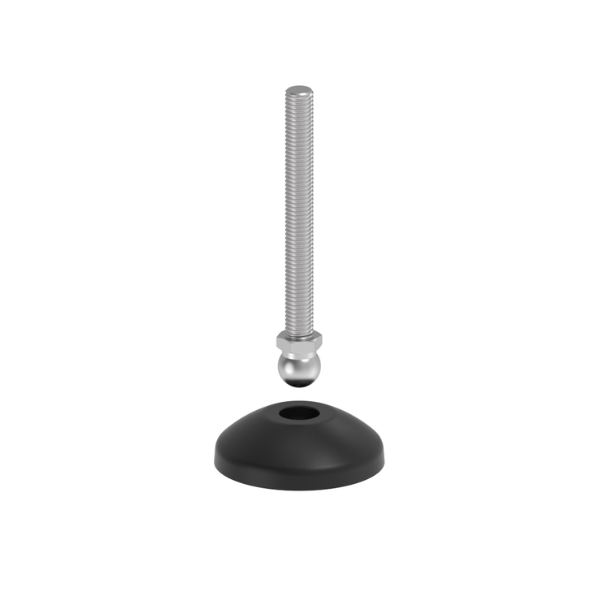

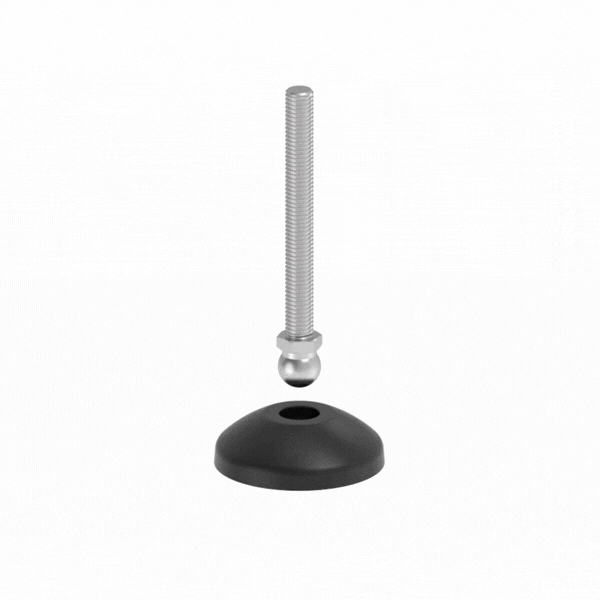

4 Series 60mm Adjustable Foot Base is an adjustable foot base with anti slip plate, used for levelling medium conveyors, assemblies, and SlotPro aluminium profile structures. This 4 Series 60mm Adjustable Foot Base requires a threaded rod to make up the full adjustable foot assembly.

The 4 Series 60mm Adjustable Foot Base is made from Nylon PA with glass ball reinforcement and is compatible with the 6.04.SPTR1090 Threaded Rod. It provides a stable levelling option for medium 4 Series SlotPro builds where floor contact, height adjustment, and frame support are required.

Product Name: 4 Series 60mm Adjustable Foot Base
Product Code: 6.04.SPAF60
Series: 4 Series

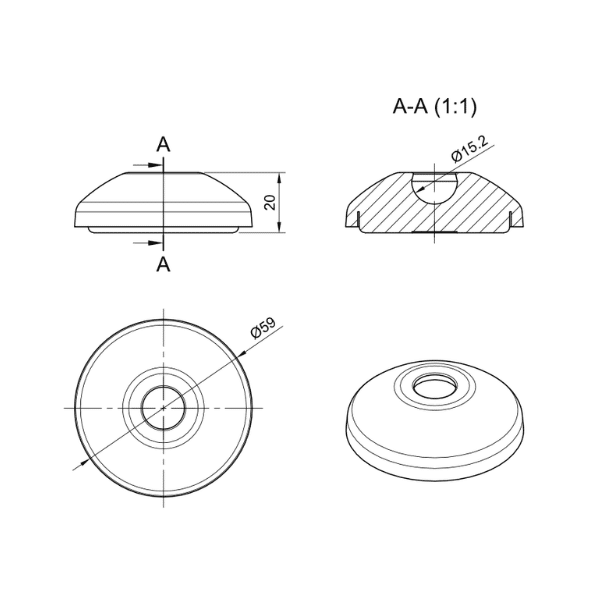

Base Diameter: 60mm
Material: Nylon PA, glass ball reinforced
Compatible With: 6.04.SPTR1090 Threaded Rod

Fixings Required:
• 1 x 6.04.SPTR1090 Threaded Rod

Key Features:
• 60mm adjustable foot base for medium conveyors and assemblies
• Anti slip plate for improved floor contact
• Nylon PA construction with glass ball reinforcement
• Requires threaded rod to complete the foot assembly
• Compatible with 6.04.SPTR1090 Threaded Rod
• Suitable for 4 Series SlotPro aluminium profile structures

Installation Tip:
Fit the 6.04.SPTR1090 Threaded Rod into the adjustable foot base, then install the foot assembly into the frame. Adjust the threaded rod until the structure is level and check that the foot base sits flat on the floor.

Common Applications:
• Medium conveyor frames
• Machine support frames
• Workstations and benches
• Guarding and enclosure frames
• Modular aluminium profile assemblies
• Industrial support structures

Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or help selecting the right feet and components for your build.
