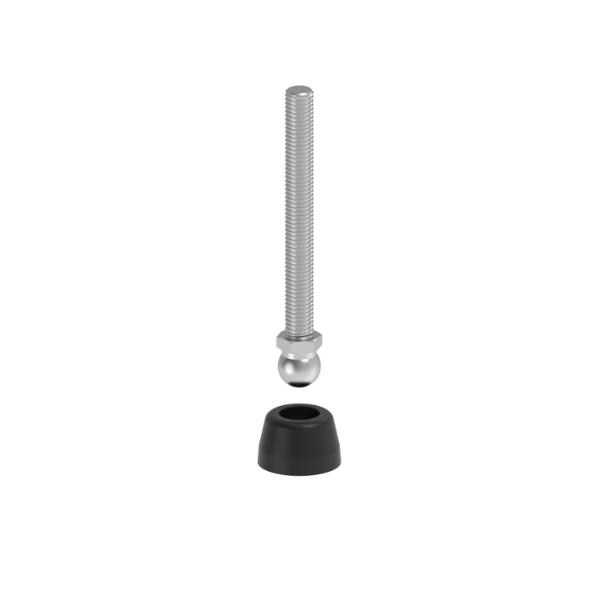

4 Series 40mm Adjustable Foot Base

4 Series 40mm Adjustable Foot Base is an adjustable foot base with anti slip plate, used for levelling small frames, conveyors, light assemblies, and SlotPro aluminium profile structures. This 4 Series 40mm Adjustable Foot Base requires a threaded rod to make up the full adjustable foot assembly.

The 4 Series 40mm Adjustable Foot Base is made from Nylon PA with glass ball reinforcement and is compatible with the 6.04.SPTR1090 Threaded Rod. It provides a compact levelling option for lighter 4 Series SlotPro builds where floor contact, height adjustment, and frame stability are required.

Product Name: 4 Series 40mm Adjustable Foot Base
Product Code: 6.04.SPAF40
Series: 4 Series

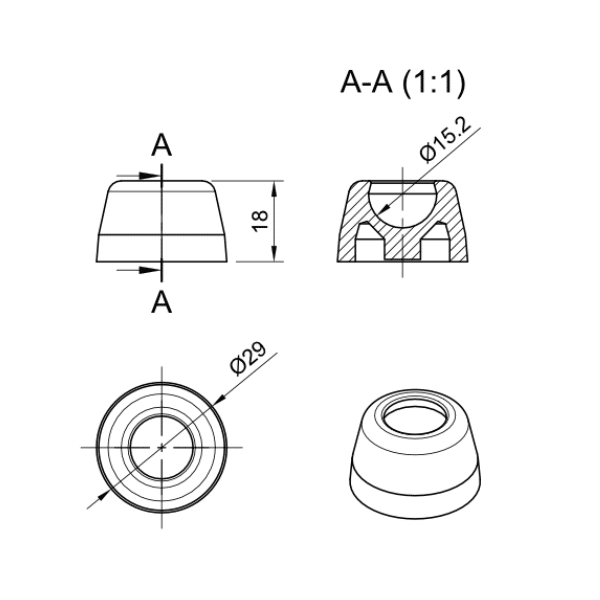

Base Diameter: 40mm
Material: Nylon PA, glass ball reinforced
Compatible With: 6.04.SPTR1090 Threaded Rod

Fixings Required:
• 1 x 6.04.SPTR1090 Threaded Rod

Key Features:
• 40mm adjustable foot base for small frames and light assemblies
• Anti slip plate for improved floor contact
• Compact base size for lighter SlotPro structures
• Nylon PA construction with glass ball reinforcement
• Requires threaded rod to complete the foot assembly
• Compatible with 6.04.SPTR1090 Threaded Rod

Installation Tip:

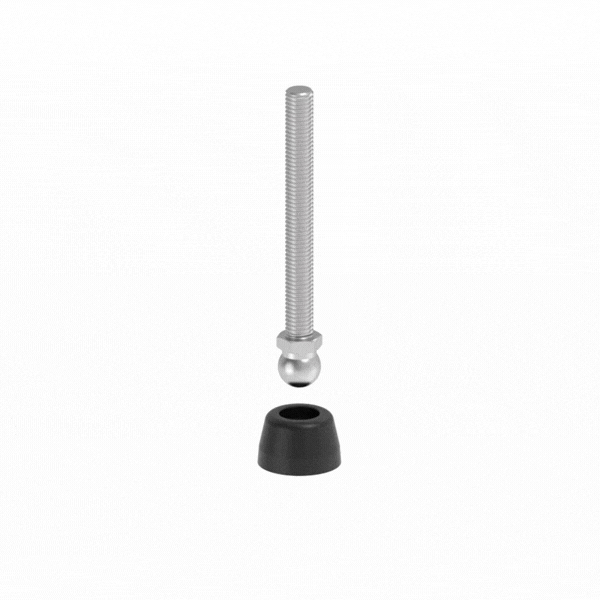

Fit the 6.04.SPTR1090 Threaded Rod into the adjustable foot base, then install the foot assembly into the frame. Adjust the threaded rod until the structure is level and check that the foot base sits flat on the floor.

Common Applications:
• Small frame levelling
• Light conveyor frames
• Workstations and benches
• Guarding and enclosure frames
• Modular aluminium profile assemblies
• Light machine support frames

Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or help selecting the right feet and components for your build.
