Description

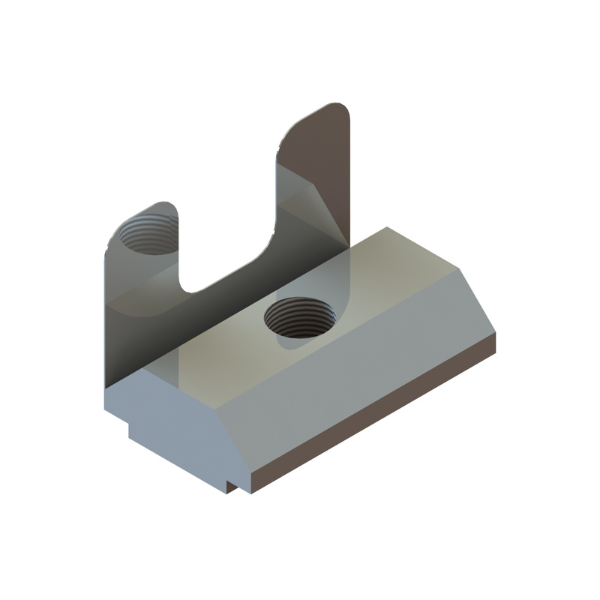

3 Series Roll in Slot Nut with Spring M5 is designed for post-assembly insertion into 3 Series SlotPro aluminium profiles. The nut rolls into the T-slot and is held in place by a spring-loaded ball, allowing secure fastening even when the profile is mounted vertically.
This fastening method is ideal for retrofitting components or adding brackets, panels, or accessories after a structure is built. The spring holds the nut in position, ensuring ease of alignment during installation. Available in M4, M5, M6 and M8 thread.
Product Name: 3 Series Roll in Slot Nut with Spring M5
Product Code: 3.03.R.SP5
Material: Zinc Plated Steel
Compatible With: All 3 Series SlotPro Extrusions and Accessories
Key Features:
- Roll-in design for easy post-build insertion
- Spring-loaded retention for vertical positioning
- Strong and reusable fastening method
- M5 thread size
- Also available in M4, M6 and M8 thread options
Common Applications:
- Retrofitting components after assembly
- Vertical profile mounting
- Fastening brackets, panels, and accessories
- Modular framing systems
- Adjustable or reconfigurable setups
Need Custom Lengths or Help with a Project?
SlotPro provides a cut and mill service for tailored lengths and configurations. For assistance:
