Description

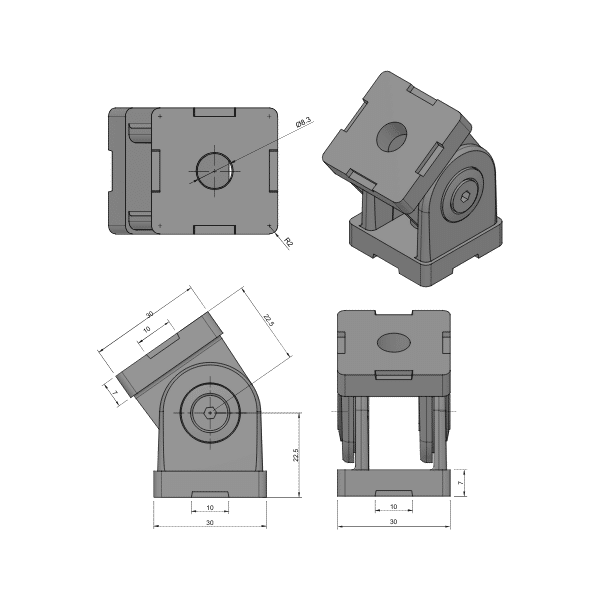

3 Series Pivot Joint is used to make a pivoting connection between two profiles or panels, with separate locating pins for slot 6 and 8mm. By tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position.

It is a lightweight yet sturdy, external fastening method.

SlotPro provides a cut and mill service. For custom lengths or design assistance please don’t hesitate to contact us: 0800 00 28 32 or [email protected]

Download the CAD file for this product in .step formatย here.

  • Product Code: 4.03.SPSJ
  • Material:ย Zinc die-cast
  • Finish:ย Alu colour laquered
  • Fixings Required:
    • 2 x 3.03.R.SP6 – 3 Series Roll in Slot Nut with Spring M6
    • 2 x M6 x 12 Cap Screw
  • Compatible with: All other 3 Series components and extrusions.
