3 Series Linear Connector Set

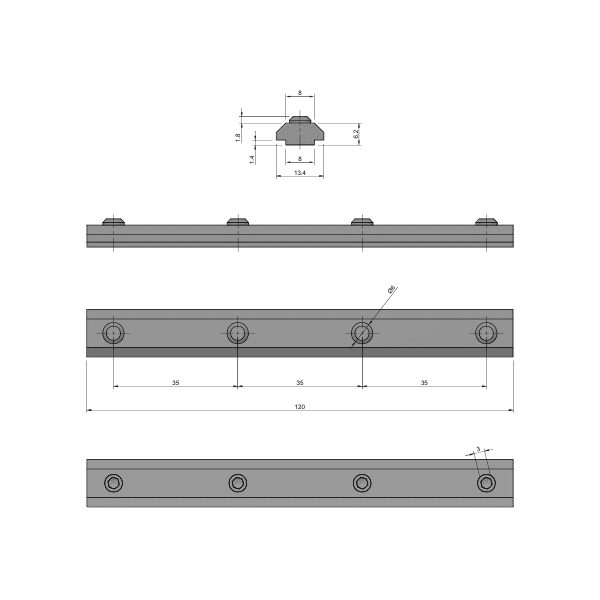

3 Series Linear Connector Set is a simple internal joining set designed to connect two SlotPro aluminium profiles in a straight line. The zinc plated connector bar slides into the T slot of each profile and is secured with grub screws, creating a strong inline connection without external brackets.

3 Series Linear Connector Set is suited to 3 Series SlotPro extrusion frames where longer runs or straight frame sections are required. It is easy to install, reposition, and reuse, making it a practical connector for equipment racks, enclosures, cleanroom frames, and display structures.

Product Name: 3 Series Linear Connector Set
Product Code: 2.03.SPLC
Series: 3 Series
Material: Zinc plated steel
Weight: 0.065 kg
Compatible With: 3 Series SlotPro extrusions

Fixings Required:
• 4 × M6 x 8 Grub Screws

Key Features:
• Inline connection for two profiles
• Internal fastening method for a clean external appearance
• No machining or milling required
• Grub screws provide secure internal locking
• Easy to reposition and reuse
• Zinc plated finish for strength and corrosion resistance

Installation Tip:

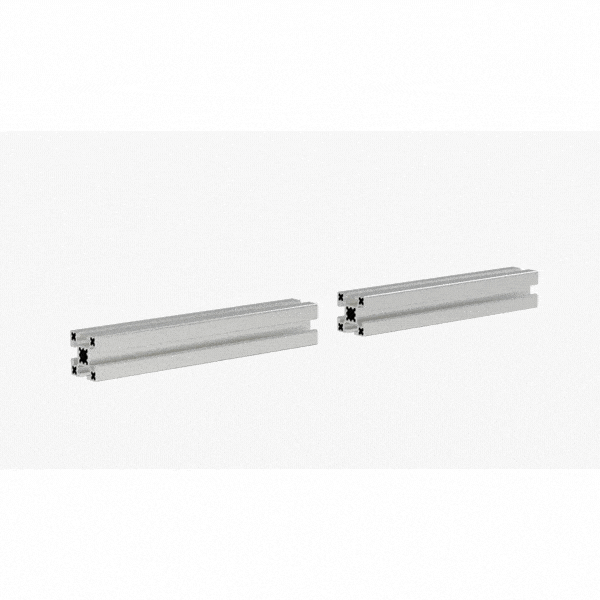

Slide the connector evenly into both profiles, align the frame section, then tighten the grub screws to secure the connection.

Common Applications:
• Profile extension and joining
• Modular framing assemblies
• Equipment racks and enclosures
• Cleanroom and display structures
• Straight frame sections in 3 Series builds

Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or help selecting the right components for your build.
