Description

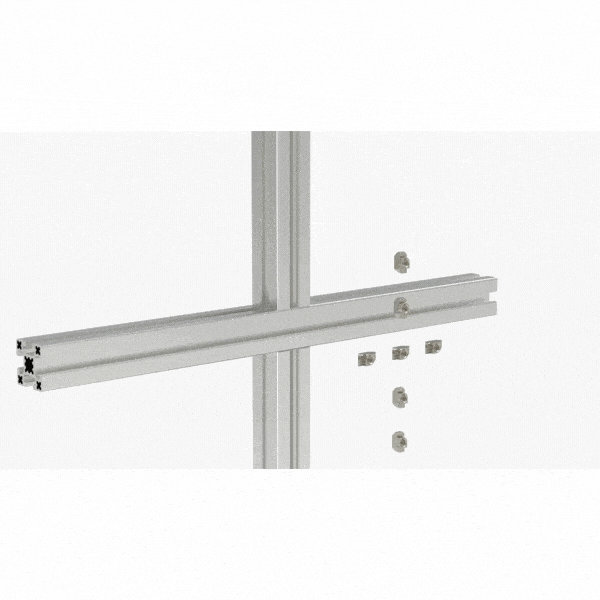

3 Series Flat X Plate is a strong external fastening solution designed to connect four aluminium profiles at a central junction. The plate’s flat X shape allows for a flush fit and offers increased clearance around the join. It is secured using the included fixings and provides excellent rigidity in high-load or multi-directional structures.
3 Series Flat X Plate does not require any milling and is ideal for modular setups where adjustability and durability are essential. For additional strength, a second plate can be mounted on the opposite side of the profiles.

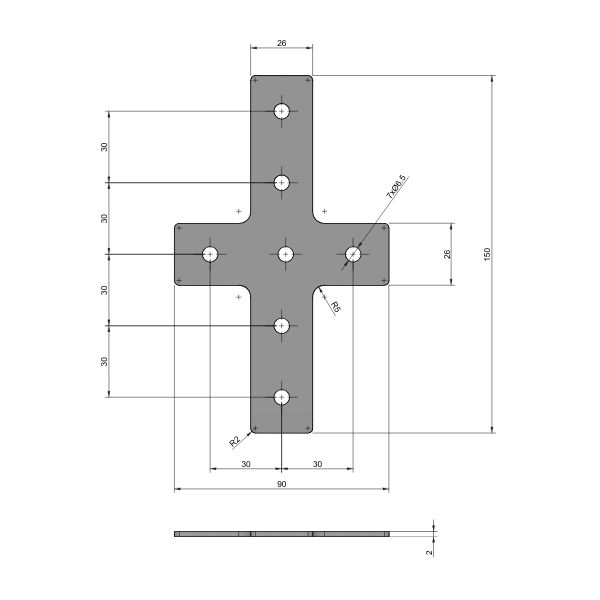

Product Name: 3 Series Flat X Plate
Product Code: 6.03.SPXP
Material: Zinc Plated Steel
Compatible With: 3 Series SlotPro Extrusions
Fixings Included:
• 7 x M6 x 10 Bolts
• 7 x M6 Spring Washers
• 7 x M6 T Nuts
Key Features:
• Connects four profiles at 90-degree intersections
• Flush-fitting X design for increased clearance
• No machining required
• Easily reconfigurable and reusable
• Fixings included for fast installation
• Excellent for rigid and multi-join assemblies
Common Applications:
• Multi-directional machine frame joints
• Structural bracing for cross-shaped assemblies
• Display structures and kiosks
• Frame junctions in modular systems
• Reinforced intersections requiring large surface contact
Need Custom Lengths or Design Support?
SlotPro provides a cut and mill service to suit your project. For layout advice or help selecting compatible accessories, contact our team:
