Description

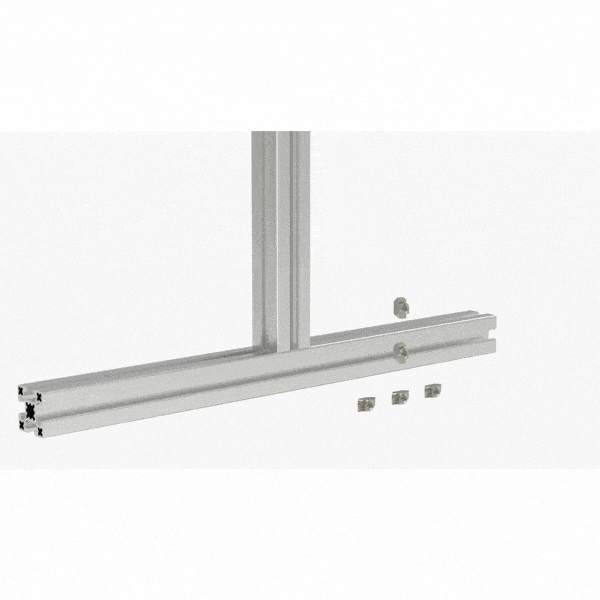

3 Series Flat T Plate is a robust external connector designed to fasten three aluminium profiles at a 90-degree T-junction. The flat profile ensures a flush fit, making it ideal for applications requiring larger clearance and streamlined integration into modular builds.

3 Series Flat T Plate is easy to install, does not require milling, and can be reconfigured or reused as needed. For greater strength and durability, a second plate can be mounted on the reverse side of the profiles.

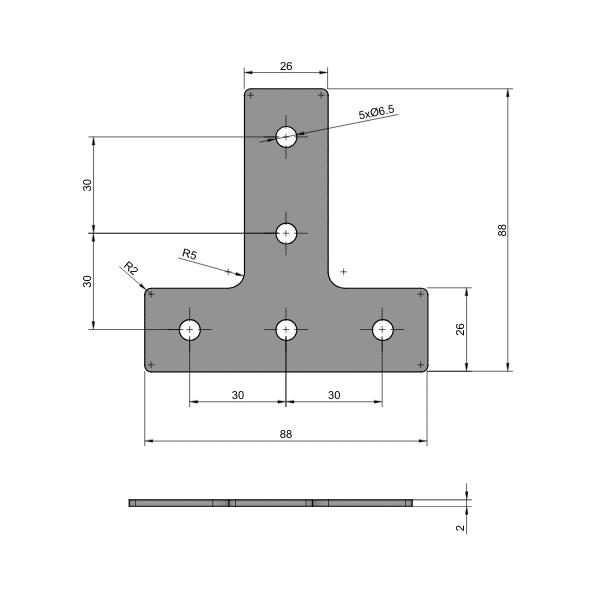

Product Name: 3 Series Flat T Plate
Product Code: 6.03.SPTP
Material: Zinc Plated Steel
Compatible With: 3 Series SlotPro Extrusions

Fixings Included:

  • 5 x M6 x 10 Bolts
  • 5 x M6 Spring Washers
  • 5 x M6 T Nuts

Key Features:

  • External plate for 3-way profile T-connections
  • Flush-fit design for increased clearance
  • Strong and durable fastening solution
  • No machining required
  • Reusable and easy to reposition
  • Supplied with all required fixings

Common Applications:

  • Frame intersections in machine structures
  • T-junctions in modular guarding systems
  • Display and kiosk frames
  • Automation base frames
  • Fixtures requiring rigid corner connections
