Description

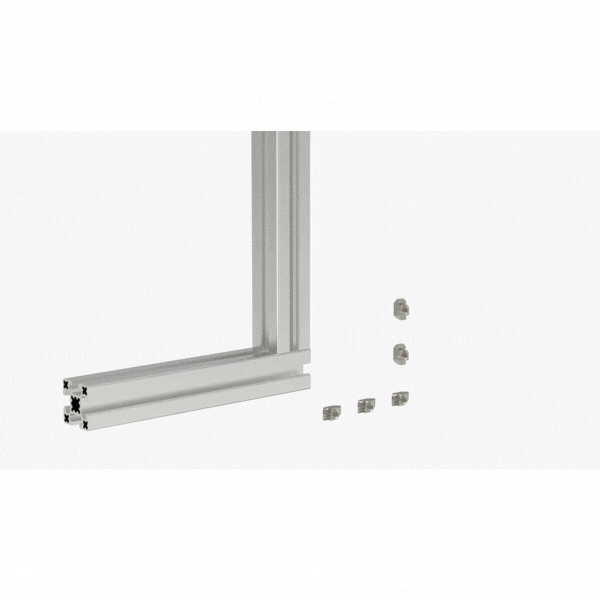

3 Series Flat L Plate is a strong, external fastening method designed to secure two aluminium profiles at a 90-degree angle. The plate sits on the outside of the joined profiles and is fastened down using the included fixings. For additional strength and load resistance, Flat L Plates can be mounted on both sides of the join.

3 Series Flat L Plate does not require any machining and is an excellent option for quick, adjustable, and reusable profile connections. Suitable for structural applications where external reinforcement is preferred.

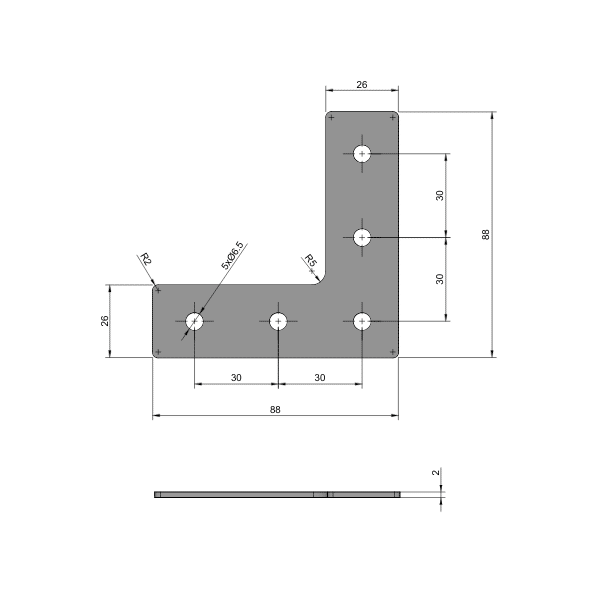

Product Name: 3 Series Flat L Plate
Product Code: 6.03.SPLP
Material: Zinc Plated Steel
Compatible With: 3 Series SlotPro Extrusions

Fixings Included:

  • 5 x M6 x 10 Bolts
  • 5 x M6 Spring Washers
  • 5 x M6 T Nuts

Key Features:

  • Strong external connector plate for 90° joints
  • No machining required
  • Easily repositionable and reusable
  • Fixings included for fast installation
  • Ideal for structural reinforcement and load-bearing joins

Common Applications:

  • External bracing for machine frames
  • Structural corner reinforcement
  • Frame extensions and modular enclosures
  • Display frames and kiosks
  • Fastened joins without internal machining

Need Custom Lengths or Design Support?
SlotPro provides a cut and mill service to suit your project. For layout advice or help selecting compatible accessories, contact our team:
📞 0800 00 28 32
📧 [email protected]
