3 Series 30mm Pivot Joint

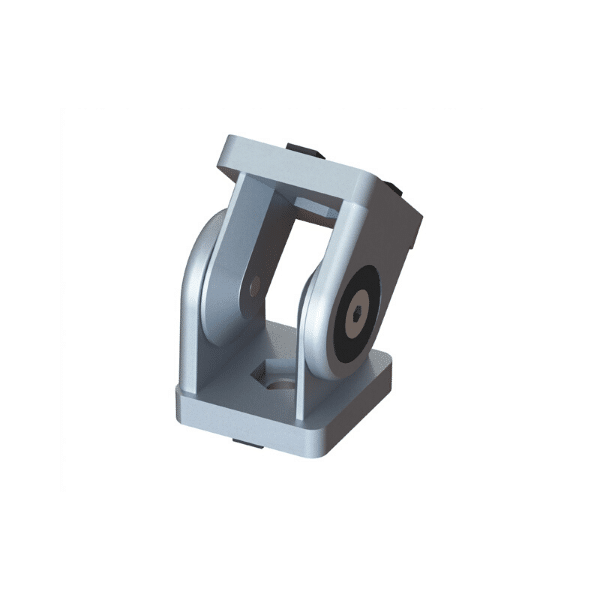

3 Series 30mm Pivot Joint is a zinc die-cast pivot joint used to create an adjustable connection between two SlotPro aluminium profiles or panels. This 3 Series 30mm Pivot Joint includes separate locating pins for 6mm and 8mm slots, making it suitable for adjustable 3 Series profile assemblies.

The 3 Series 30mm Pivot Joint can be tightened or loosened to control the movement of the joint, or fixed in one position when required. It provides a lightweight but strong external fastening method for angled frames, pivoting arms, adjustable panels, and modular machine structures.

Product Name: 3 Series 30mm Pivot Joint
Product Code: 4.03.SPSJ
Series: 3 Series
Material: Zinc die-cast
Finish: Alu colour lacquered
Compatible With: All 3 Series SlotPro extrusions and components

Fixings Required:
• 2 x 3.03.R.SP6, 3 Series Roll in Slot Nut with Spring M6
• 2 x M6 x 12 Cap Screws

Key Features:
• Adjustable or fixed pivot connection
• Compatible with 6mm and 8mm slot profiles
• Lightweight zinc die-cast construction
• Allows joint tension to be adjusted with screws
• Alu colour lacquered finish
• Suitable for 3 Series SlotPro aluminium profile assemblies

Installation Tip:
Install the pivot joint using the correct locating pins for the profile slot size. Tighten the M6 cap screws to fix the joint in position, or loosen slightly where controlled pivoting movement is required. Check alignment before final tightening.

Common Applications:
• Pivoting or hinged arms
• Adjustable panels and brackets
• Folding or swing frame structures
• Modular machine frame assemblies
• Angled aluminium profile connections
• Workstations and guarding frames

Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or help selecting the right pivot joints and components for your build.
