2 Series 20 x 20 Aluminium Equal Angle

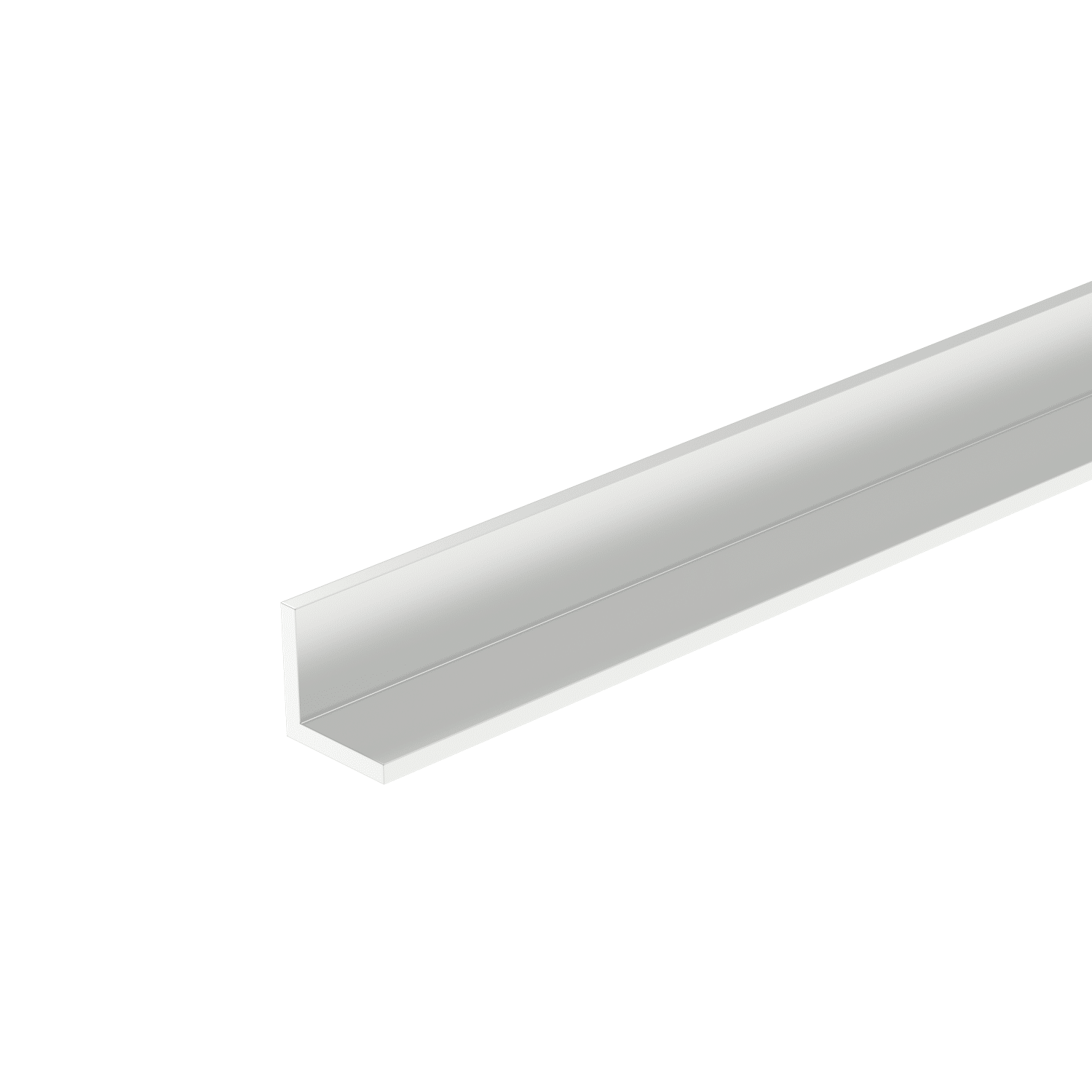

2 Series 20 x 20 Aluminium Equal Angle is a compact 90 degree L shaped aluminium profile measuring 20mm x 20mm. This equal angle extrusion is suited to light frame bracing, edge protection, panel edging, and smaller structural support tasks.

2 Series 20 x 20 Aluminium Equal Angle can be used with SlotPro 2 Series systems or as a standalone aluminium profile for compact frames, enclosures, shelving, and workshop projects. Supplied in a silver anodised finish, it is available cut to length for small builds and detailed assemblies.

Product Name: 2 Series 20 x 20 Aluminium Equal Angle
Product Code: 1.0202.0.SPEA
Series: 2 Series
Material: Aluminium
Grade: 6063T5
Finish: Anodised
Colour: Silver
Length: Priced per mm, available in any length over 10mm and under 5800mm
KG/M: 0.6
Compatible With: SlotPro 2 Series systems and general aluminium framing projects

Key Features:
• 20mm x 20mm equal angle profile
• 90 degree L shaped aluminium extrusion
• Lightweight aluminium construction
• Suited to compact frame bracing, edge protection, and panel edging
• Available cut to length to suit your project

Installation Tip:
Select the required length when ordering. For fixing holes or mounting points, check hole spacing and edge clearance before drilling or machining.

Common Applications:
• Corner bracing for light frames
• Small machinery supports
• Display and shelving structures
• Panel edging and frame support
• Workshop and DIY builds

Need Custom Lengths or Help with Design?
SlotPro offers a cut and mill service. Contact our team for layout assistance, technical support, or help selecting the right components for your build.
