Description

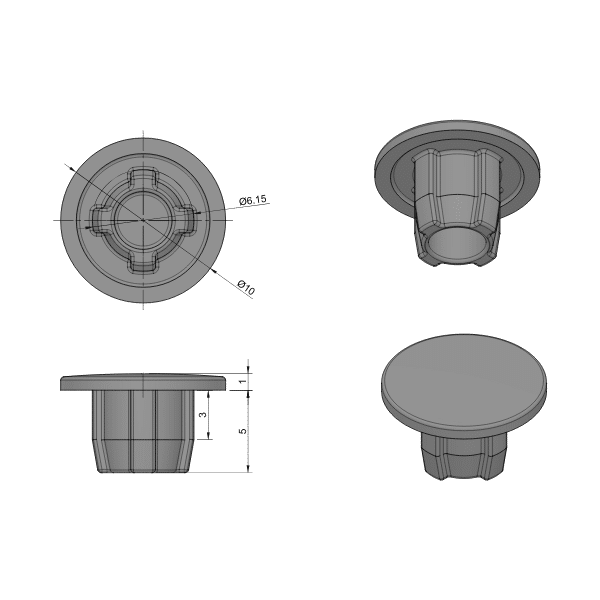

The Wing Hinge Cover Caps are designed to complete the SlotPro concealed hinge system by sealing the exposed ends of the hinge body. These durable plastic caps fit securely into the ends of the wing hinge and snap over the Wing Hinge SS Pin, protecting the assembly from dust, debris, and wear.

Wing Hinge Cover Caps are compatible with all SlotPro Wing Hinges across the 2, 3, and 4 Series and are essential for both protection and a clean, finished appearance. This product includes the cover caps only – hinges, pin, and fasteners are sold separately.

Fixings Required to Make 1 Hinge:

  • 2 x 4.0X.WH – Wing Hinge (2, 3, or 4 Series)

  • 1 x 4.04.WHP – Wing Hinge SS Pin

  • 2 x 4.04.WHCC – Wing Hinge Cover Cap (this product)

  • 4 x Roll-in Slot Nuts or T-Nuts

  • 4 x Countersink Screws

Installation Tip:
Once the wing hinges and hinge pin are installed, simply push the cover caps into place at each end of the hinge. Ensure they are firmly seated to protect internal components and maintain the hinge’s clean profile.

Product Name: Wing Hinge Cover Caps
Product Code: 4.04.WHCC
Series: Universal (2, 3, 4 Series)
Material: Plastic
Colour: Silver
Compatible With: All SlotPro Wing Hinges (2, 3, and 4 Series)

Key Features:

  • Protective end caps for wing hinge assemblies

  • Prevents dust and debris from entering the hinge

  • Compatible with all SlotPro Wing Hinges and Hinge Pins

  • Provides a clean, professional finish

  • Easy press-fit installation

Common Applications:

  • Modular enclosures and frames

  • Electrical or mechanical access panels

  • Secure compartments requiring concealed hinges

  • Industrial cabinetry and service housings
