Description

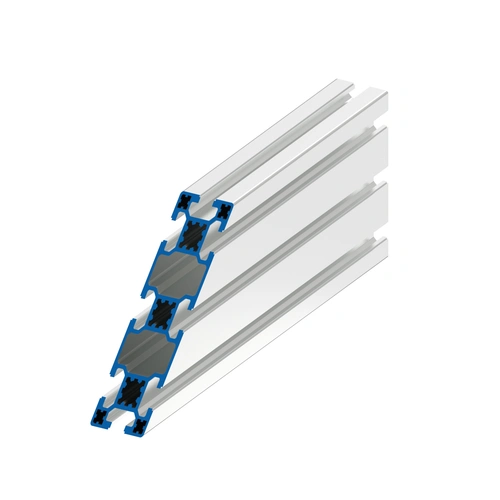

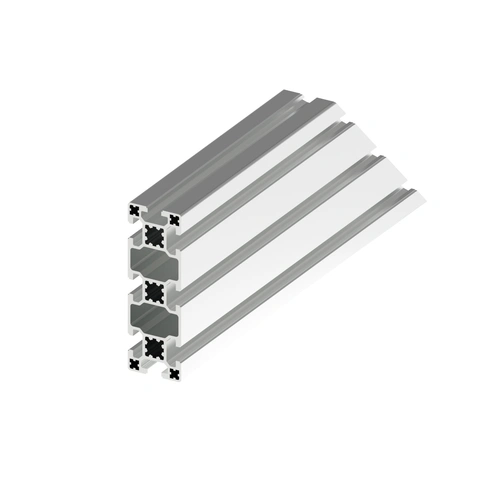

20 x 60 SlotPro 8 Slot Standard Extrusion is a 2 Series T-slot profile with a 6mm T-slot on each face. Two slots on each 60mm face and one on each 20mm face provide mounting access from all directions. The surface is smooth, easy to clean, and resists buildup of dirt and debris.

The 20 x 60 SlotPro 8 Slot Standard Extrusion is part of SlotPro’s smallest extrusion series. It’s ideal for lightweight builds such as small machine frames, modular automation systems, and displays. The eight open T-slots allow for flexible component placement and easy integration with SlotPro accessories and connectors.

Product Name: 20 x 60 SlotPro 8 Slot Standard Extrusion
Product Code: 1.0206.8.SPRS
Series: 2 Series
Material: Aluminium
Grade: 6063T5
Finish: Anodised
Colour: Silver
KG/M: 1
Length: Priced per MM, available in any length over 10mm and under 5800mm.
Compatible With: All 2 Series components and accessories.

Key Features:

  • Eight open T-slots for all-direction mounting
  • Smooth anodised finish resists dirt and debris buildup
  • Lightweight profile with rigid strength
  • Compatible with SlotPro 2 Series components
  • Supports clean, fast, and modular assembly

Common Applications:

  • Small machine structures
  • Modular automation frameworks
  • Display stands and frames
  • Compact guarding solutions
  • Instrument enclosures

Need Custom Lengths or Design Support?
SlotPro provides a full cut and mill service to suit your project. For layout advice or help selecting compatible accessories, contact our team:
